Battery Interrupt Igniter N253 Assembly Overview

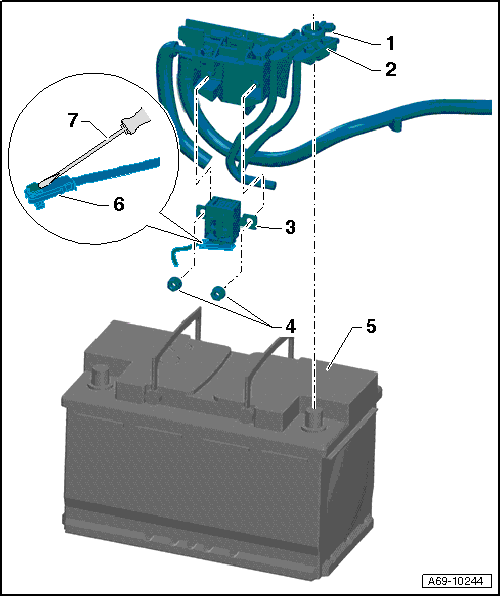

Fig 1: Battery Interrupt Igniter N253 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • Quantity: 2
   • 6 Nm
2. Battery positive terminal
   • With additional electrical wires
3. Battery Interrupt Igniter -N253-
   • Removing and Installing, refer to BATTERY INTERRUPT IGNITER N253
4. Nut
   • 15 Nm
5. Battery
