Airbag Control Module J234 Assembly Overview

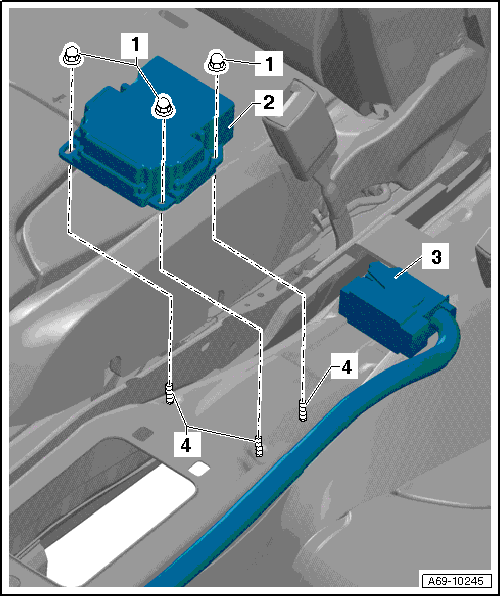

Fig 1: Airbag Control Module J234 Assembly Overview
GWWA69-10245Courtesy of AUDI OF AMERICA, LLC
  1. Nut
    • 9 Nm
  2. Airbag Control Module -J234-
  3. Connector
    • To disconnect securing clip on connector, open and disconnect connector.
  4. Threaded pin
    • Quantity: 3
