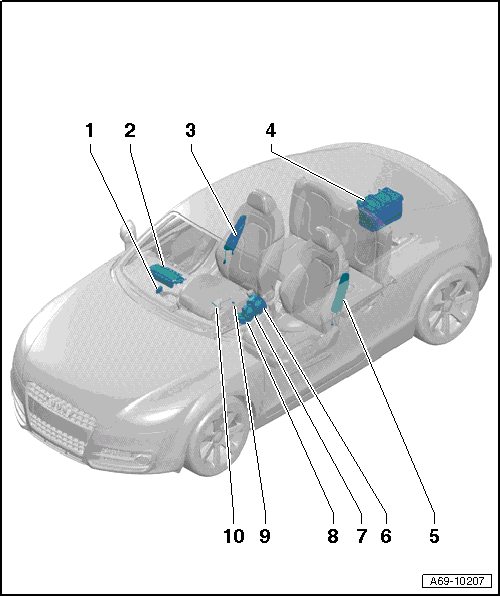

Airbag Component Location Overview
- Front Passenger Airbag -Off- Key Switch -E224-
Not for North American market.
- Front passenger airbag unit
- Removing and Installing, refer to FRONT PASSENGER AIRBAG UNIT
- Front passenger side airbag
- Assembly Overview, refer to FRONT SIDE AIRBAG ASSEMBLY OVERVIEW
- Removing and Installing, refer to SIDE AIRBAG
- Battery Interrupt Igniter -N253-
- Removing and Installing, refer to BATTERY INTERRUPT IGNITER N253
- Driver side airbag
- Assembly Overview, refer to FRONT SIDE AIRBAG ASSEMBLY OVERVIEW
- Removing and Installing, refer to SIDE AIRBAG
- Driver airbag unit
- Assembly Overview, refer to DRIVER SIDE AIRBAG UNIT ASSEMBLY OVERVIEW
- Removing and Installing, refer to DRIVER AIRBAG IGNITER N95 AND DRIVER AIRBAG IGNITER 2 N250
- Airbag Spiral Spring/Return Spring With Slip Ring -F138-
- Removing and Installing, refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation
- Airbag Control Module -J234-
- Installation location: on the center tunnel
- Removing and Installing, refer to AIRBAG CONTROL MODULE J234 .
- Airbag Malfunction Indicator Lamp (MIL) -K75-
- Installed location: in the instrument cluster, refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation
- Front passenger airbag -disabled- indicator lamp -K145-
- Installed location: in the radio/navigation unit
- Removing and installing, refer to Removal and Installation
