Engine Speed Sensor -G28-

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removing

-- Remove the engine cover.

-- Remove the cover for the air guide; disengage the side clips to do this -arrows-.

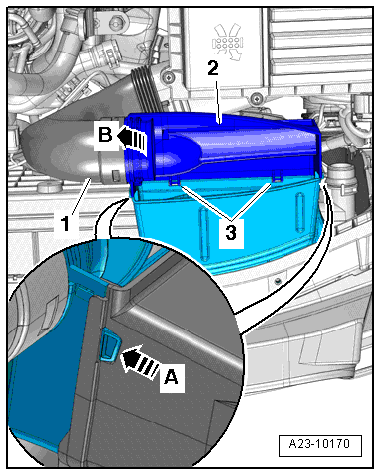

Fig 1: Air Duct Cover Slide Clips

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide pipe -1-.

Fig 2: Removing Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The air guide -2- does not have to be removed.

-- Open the air guide pipe hose clamp -2-.

Fig 3: Air Guide Hose Bolts, Air Guide Pipe Hose Clamps & Electrical Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical harness connector -arrow-.

-- Remove the noise insulation. Refer to Removal and Installation .

-- Remove the bolt -1 and 4- and remove the air guide hose downward from the throttle valve control module -J338-.

-- Remove the air guide hose -1- from the charge air cooler and remove the air guide pipe downward.

Fig 4: Air Cooler Air Duct

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -1- on Engine Speed (RPM) sensor.

Fig 5: Engine Speed (RPM) Sensor G28

Courtesy of AUDI OF AMERICA, LLC

-- Remove the RPM sensor bolt.

Installing

Install in reverse order of removal. Note the following:

Tightening specifications: Component locations overview, refer to COMPONENT LOCATIONS OVERVIEW
