Cylinder Head

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Engine Bung Set VAS 6122

Removing

NOTE:

During installation, cable ties must be installed at the same location.

Always seal off any open channels in the intake and exhaust tract with plugs. For example, use the plugs from the VAS 6122.

-- Remove the camshafts. Refer to CAMSHAFTS .

CAUTION:

Risk of damaging valves and piston crowns.

Do not turn the crankshaft if the camshaft has been removed.

-- Loosen the hose clamp -2-.

Fig 1: Air Guide Hose Bolts, Air Guide Pipe Hose Clamps & Electrical Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4-.

-- Disconnect the electrical connectors -arrow- and free up the electrical wire.

NOTE:

Ignore -1 and 3-.

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure in the system.

-- Open the coolant reservoir cap.

-- Remove front exhaust pipe with catalytic converter. Refer to FRONT EXHAUST PIPE WITH CATALYTIC CONVERTERS AND FRONT MUFFLER .

-- Remove the right front wheel.

-- Remove the air guide pipe -1 and 2-.

Fig 2: Air Cooler Air Duct

Courtesy of AUDI OF AMERICA, LLC

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the bolt -1- and remove the air guide pipe downward.

Fig 3: Air Guide Hose Bolts, Air Guide Pipe Hose Clamps & Electrical Harness Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -2, 3 and 4 and the arrow-.

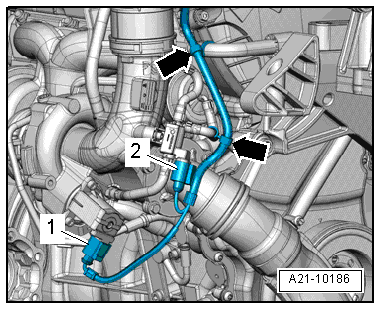

-- Disconnect electrical connectors -1 and 2- and free up electrical wire -arrows-.

Fig 4: Identifying Turbocharger Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

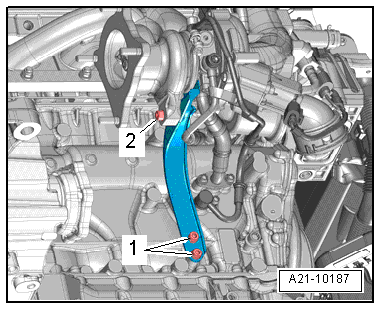

-- Remove bolts -1 and 2- and remove the turbocharger support.

Fig 5: Identifying Turbocharger Support And Bolts

Courtesy of AUDI OF AMERICA, LLC

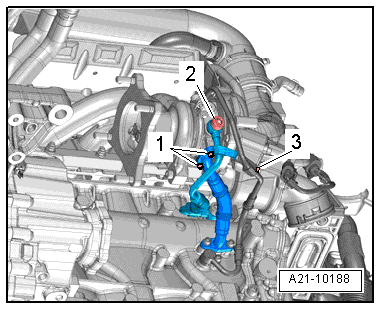

-- Remove the banjo bolt -2- and move the coolant pipe to the side.

Fig 6: Identifying Oil Return Line, Coolant Line And Oil Supply Line Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- on the oil return line.

-- Remove the bolt -3- on the oil supply line.

NOTE:

The installation location is shown with the engine removed.

-- Remove the air guide pipe bolt -arrow-.

Fig 7: Locating Air Guide Pipe Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide pipe; to do this, loosen the hose clamp -1-.

-- Press the release buttons and remove the air guide hose -2-.

-- Remove the coolant hose -1-.

Fig 8: Locating Coolant Hose Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3-.

-- Remove the coolant hoses -1 and 2-.

Fig 9: Identifying Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

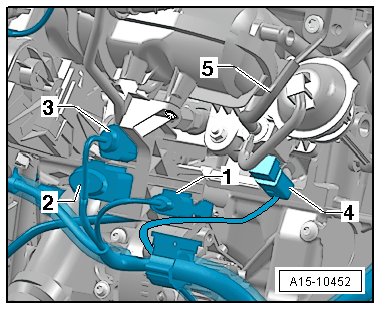

-- Disconnect the connector -4- and free up the wiring harness.

-- Remove the vacuum hose from the vacuum pump -5- and free it up.

-- Remove the bolt -3- and the coolant pipe.

NOTE:

Be careful of the ground wire -arrow- when installing.

NOTE:

The installation location is shown with the engine removed.

-- Remove the heat shield -arrows-.

Fig 10: Turbocharger And Heatshield

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the oil supply line from the turbocharger -1-.

-- Remove the coolant hoses on the rear of the cylinder head.

-- Disconnect the connectors -1 through 4-.

Fig 11: EVAP Filter Vacuum Hose, Electrical Connectors And Electrical Cable

Courtesy of AUDI OF AMERICA, LLC

-- Free up the electrical cable -5-.

-- Disconnect the vacuum hose -6- leading to the EVAP filter.

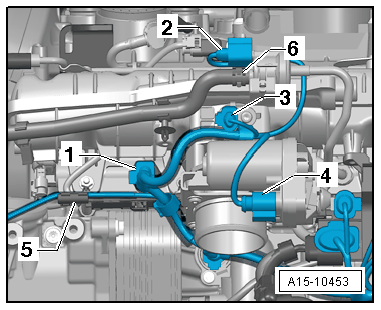

-- Disconnect the electrical connectors -1 - and pull the connectors out of the retainer.

Fig 12: Identifying Vacuum Line And Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -2 through 4-.

-- Remove the vacuum line -5-.

-- Disconnect the coolant pipe from the intake manifold, when doing this, remove the bolts -arrows-.

Fig 13: Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the intake manifold bracket by removing the mounting nut -1- and bolt -2-.

Fig 14: Identifying Intake Manifold Bracket Mounting Nut And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil filter.

WARNING:

Risk of injury from fuel.

To reduce fuel pressure, lay cloths around connecting point before opening fuel system and carefully loosen.

CAUTION:

Risk of contamination to the fuel system.

Note rules of cleanliness for working on the fuel injection system. Refer to CLEAN WORKING CONDITIONS .

-- Remove the fuel hose -1-.

Fig 15: Removing Fuel Hose

Courtesy of AUDI OF AMERICA, LLC

-- Release the Evaporative Emission (EVAP) canister -B arrow-, remove it upward -A arrow- and lay it aside.

Fig 16: Locating Fuel Supply Line

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the coolant hoses -arrows- and move them to the side.

Fig 17: Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

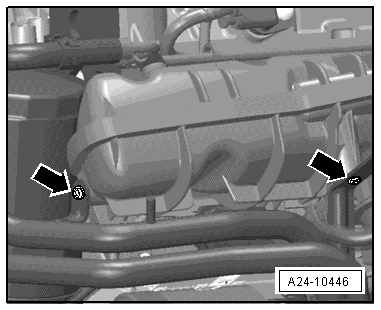

-- Remove the bolts -arrows-.

Fig 18: Cylinder Head Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cylinder head bolts in sequence -1 to 10-.

NOTE:

Make sure all wires and cables are disconnect!

Pay attention to the tension and guide tracks when lifting the cylinder head.

-- Remove the cylinder head.

-- Lay the cylinder head on a soft surface, such as foam.

Installing

For the correct tightening specifications, refer to CYLINDER HEAD OVERVIEW WITH AVS .

CAUTION:

The sealing surfaces could be damaged.

Carefully remove sealant residue from cylinder head and cylinder block.
Make sure that no long scrapes or scratches result.

Risk of damaging cylinder block.

There must be no oil or coolant in the blind holes for the cylinder head bolts in the cylinder block.

Risk of cylinder head seal leaking.

Carefully remove all grinding and sanding residue.
Only unpack new cylinder head gasket immediately prior to installation.
To prevent cylinder head seal silicone layer and recessed area from being damaged, always handle seal extremely carefully.

If a replacement cylinder is installed, only remove plastic base right before cylinder head is installed to protect open valves.

Risk of damaging valves and piston heads after working on the valve train.

To ensure valves do not strike pistons when starting, carefully rotate engine at least 2 full revolutions.

NOTE:

Replace the bolts which are being tightened with an additional turn.

Replace self-locking nuts, sealing rings, seals and O-rings.

If a replacement cylinder is installed, the contact surfaces between the hydraulic adjusting elements, roller rocker levers and cam running surfaces must be lubricated before installing the camshafts.

The hose supports, air guide pipes and hoses must be free of oil and grease before installing.

Secure all hose connections with hose clamps of the same type as those equipped by the factory.

To mount the charge hoses on their connectors securely, spray the bolts on the used clamps with rust remover before installing.

It is necessary to replace all the coolant and engine oil whenever the cylinder head or the cylinder head gasket are replaced.

-- Set cylinder head gasket in place.

Pay attention to centering pins in cylinder block -arrows-.

Fig 19: Cylinder Block Centering Pins
Courtesy of AUDI OF AMERICA, LLC
Observe cylinder head seal location, identification: The part number must be visible from the intake side.

WARNING:

When rotating the crankshaft, make sure the timing chain cannot damage any other components.

-- In the event the crankshaft has been rotated in the meantime: Set piston of cylinder 1 to TDC and turn crankshaft back again slightly.

Position the cylinder head.

-- Insert cylinder head bolts and tighten by hand.

-- Cylinder head tightening sequence. Refer to Figure.

NOTE:

There is no requirement to tighten the cylinder head bolts after repairs.

-- Rotate the vibration damper using the T10355 into the "TDC" position -arrow-.

Fig 20: Identifying Vibration Damper Rotated Into "OT" Position Using Counter Hold Tool T10355

Courtesy of AUDI OF AMERICA, LLC

Further installation is performed in the reverse order of removal, thereby observing the following:

-- Install the camshafts. Refer to CAMSHAFTS .

-- Install the timing chain guard upper section. Refer to UPPER TIMING CHAIN COVER .

-- Change engine oil.

-- Replace coolant. Refer to COOLANT, DRAINING AND FILLING .

WARNING:

Do not use a charger as a starting aid. There is the risk that the vehicle control modules could be damaged.
