Part IV
WARNING: This page is about a different variant/trim than selected.

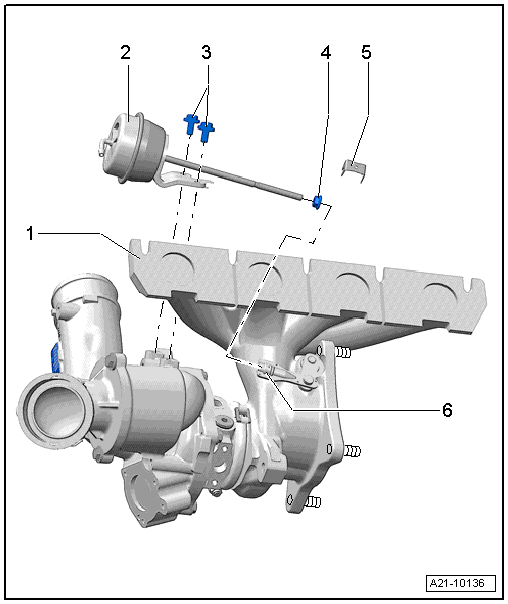

- Turbocharger
- Can only be replaced with exhaust manifold and pressure unit.
- Removing and installing, refer to TURBOCHARGER
- Turbocharger Vacuum Diaphragm
- Checking, refer to TURBOCHARGER VACUUM DIAPHRAGM, CHECKING
- Removing and installing, refer to TURBOCHARGER VACUUM DIAPHRAGM
- Adjusting, refer to TURBOCHARGER VACUUM DIAPHRAGM, ADJUSTING
- Bolt
- 10 Nm
- Nut
- 9 Nm
- Secure with sealing wax
- Securing Plate
- Knurled Nut
Additional Tightening Specifications
| Component | Nm |
|---|---|
| Right air guide pipe to the oil pan | 10 |
| Air guide pipe to bracket | 10 |
