Cylinder Head: Notes
Special tools and workshop equipment required
- Lifting Tackle 3033
- Shop Crane VAS 6100
- Camshaft Bar T10068 A
Removing
- Engine installed.
During installation, cable ties must be installed at the same location.
-- Drain coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .
-- Remove intake manifold. Refer to Removal and Installation .

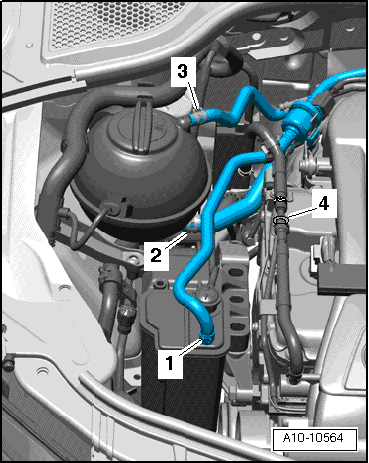

-- Pull the EVAP cannister -1- in the engine compartment together with the connected hoses upward out of the bracket and lay it to the side.
There is a risk of injury because the fuel is under pressure.
- To reduce pressure, lay cloths around connecting point before opening fuel system and carefully loosen.
-- Disconnect fuel supply hose -4- by pressing release ring.
-- Remove coolant hoses -2 and 3-.

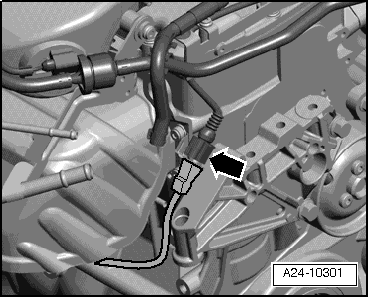

-- Disconnect knock sensor (KS) 1 -G61- electrical sensor -arrow- and free up electrical wiring.
-- Remove cylinder head cover. Refer to CYLINDER HEAD COVER .

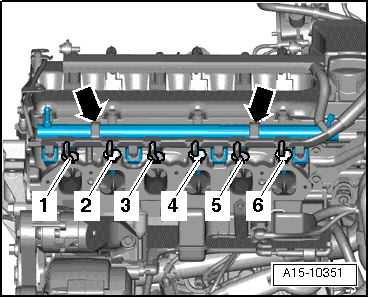

-- Disconnect electrical connectors -1 through 6- on fuel injectors.
-- Unclip line router on fuel rail -arrows-.

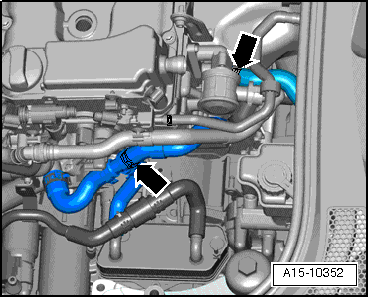

-- Remove coolant hoses -arrows-.
The illustration shows the coolant hoses on a vehicle with direct shift automatic transmission (DSG).
-- Remove coolant thermostat housing. Refer to COOLANT THERMOSTAT HOUSING .
-- Remove camshaft timing chain from camshafts. Refer to CAMSHAFT TIMING CHAIN .
-- Remove heat shield over exhaust manifold -arrows-.
Risk of damaging decoupling elements.
- Do not bend decoupling element in front exhaust pipe more than 10°.
-- Remove nuts -1 through 6- and slide front exhaust pipe back slightly from exhaust manifolds.
Oxygen sensors remain installed.
