Fastener Tightening Specifications

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Component	Bolt Size	Nm
Guide Tube for Oil Dipstick		5
Oil Cooler Cap		25
Oil Drain Plug		30
Oil Filter Housing
Locking Bolt		15
Bolt		23
Oil Filter Housing Cap		25
Oil Level Thermal Sensor		8
Oil Pressure Line		10
Oil Pressure Switch		25
Oil Pump
		10¹
		23¹
Oil Pump Drive Cover		8
Oil Pump Housing
		10²
		23²
Thrust Washer		10
¹ For bolt tightening clarification, refer to OIL PUMP AND OIL PAN ASSEMBLY OVERVIEW and see items -12 and 16- ² For bolt tightening clarification, refer to OIL PUMP ASSEMBLY OVERVIEW and see items -3 and 8-

Oil Pan - Tightening Specifications and Tightening Sequence

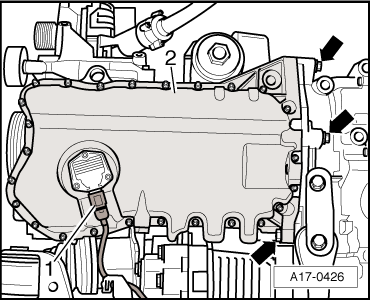

Fig 1: Oil Level Thermal Sensor G266 Electrical Connector, Oil Pan/Transmission Bolts & Oil Pan Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts in 3 stages as follows:

-- Pre-tighten the bolts connect the oil pan to the cylinder block in a diagonal sequence to 5 Nm.

-- Tighten oil pan to transmission connection -arrows- bolts ENGINE, INSTALLING => Manual transmission to engine fastener .

-- Tighten oil pan to cylinder block connection bolts diagonally to 12 Nm.
