Oil Pan: Installing

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specifications, refer to OIL PUMP AND OIL PAN ASSEMBLY OVERVIEW , Figure.

Installation is in reverse order of removal, note the following:

-- Carefully remove sealant residue on cylinder block.

WARNING:

Risk of eye injury.

Wear safety glasses.

-- Remove residual sealant on the oil pan for example with a rotating plastic brush.

Fig 1: Identifying Removal Of Residual Sealant On Oil Pan E.G. With Rotating Plastic Brush

Courtesy of AUDI OF AMERICA, LLC

-- Clean sealing surfaces, must be free of oil and grease.

-- Cut tube nozzle at front marking (jet dia. approximately 1.5 mm).

Fig 2: Cut Tube Nozzle At Front Marking (Nozzle Diameter Approx. 3 Mm)

Courtesy of AUDI OF AMERICA, LLC

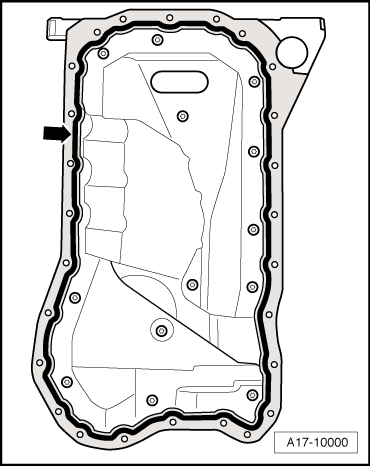

-- Apply sealant -arrow- to clean oil pan sealing surface as shown in illustration.

Fig 3: Applying Bead Of Silicone Sealant Onto Clean Sealing Surface Of Sump

Courtesy of AUDI OF AMERICA, LLC

Thickness of sealant bead: 2 mm.

CAUTION:

Risk of plugging oil pump strainer with excess sealant.

Do not apply sealant bead thicker than indicated.

NOTE:

Be especially careful when applying sealant bead in area of timing chain lower cover.
Oil pan must be installed within 5 minutes of applying sealant.

-- Tighten oil pan -2-. Refer to Figure.

Fig 4: Oil Level Thermal Sensor G266 Electrical Connector, Oil Pan/Transmission Bolts & Oil Pan Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Connect electrical connector -1- on oil level thermal sensor -G266-.

CAUTION:

Risk of leaking at oil pan.

After installing oil pan, allow sealant to dry for approximately 30 minutes. Only after then may the engine oil be replenished.

-- Fill engine oil and check oil level. Refer to OIL LEVEL, CHECKING .
