Fastener Tightening Specifications
| Component | Bolt Size | Nm | ||
|---|---|---|---|---|
| A/C Compressor | 25 | |||
| Bearing Cap | 30 + 180° (1) | |||
| Coolant Pump | 8 | |||
| Connecting Rod | 30 + 90° (1) | |||
| Dual Mass Flywheel | 60 +90° (1) | |||
| Generator | 23 | |||
| Idler Roller | 40 | |||
| Ribbed Belt Pulley for Coolant Pump | 20 | |||
| Tensioning Device for Ribbed Belt | 50 | |||
| Vibration Damper | 100 + 180° (1) | |||
|
||||

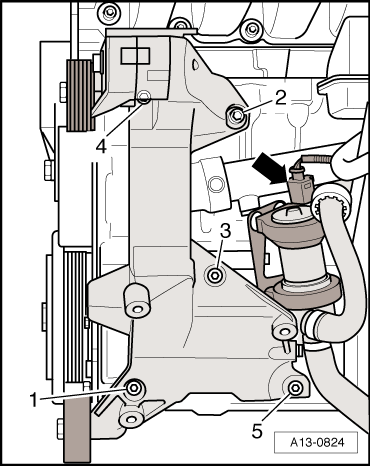

Accessory Assembly Bracket - Tightening Specifications and Tightening Sequence
-- Tighten bolts in 2 stages in -1 to 5- sequence as follows:
| -- Tighten bolts by hand.-- Tighten the bolts to 23 Nm. |
Bolts -1- and -2- are fitting bolts.

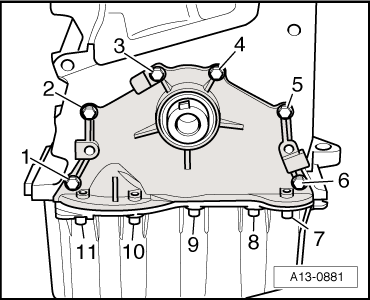

Sealing Flange - Tightening Specifications and Tightening Sequence
-- Tighten bolts in 3 stages as follows:
| -- Install bolts -1 to 11- and tighten by hand.-- Tighten the bolts -1 to 6- diagonally in stages to 10 Nm.-- Tighten bolts -7 to 11- to 10 Nm. |
Install Engine Speed (RPM) Sensor -G28- Sensor Wheel
If sensor wheel bolts were loosened, bolts and sensor wheel must be replaced.
-- Clean contact surface between crankshaft and sensor wheel, it must be free of oil and grease.
-- Lightly coat contact surface between crankshaft and sensor wheel with locking compound, locking compound.

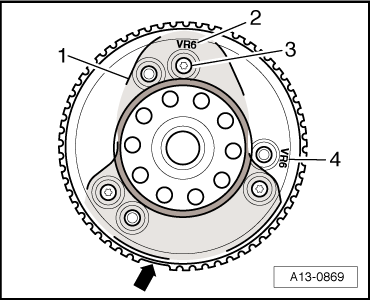

Installation position:
- The mark "VR6" -2- must be positioned at the bore of bolt -3-, that goes into the crank pin of the crankshaft (the contour of the crankshaft is shown by the dashed line -1-).
- The gap -arrow- in the ring gear lies across from the designation.
Ignore the second "VR6" imprint -4-.
-- Tighten sensor wheel bolts in 3 stages as follows:
-- Tighten bolts by hand.
-- Tighten the bolt -3- to 10 Nm and an additional 90° (1 /4 turn).
-- Tighten both other bolts to 10 Nm and an additional 90° (1 /4 turn).
