Sealing Flange

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Assembly Tool T10215
Hand drill with plastic brush attachment
Protective eyewear
Sealant.

Removing

-- Remove vibration damper. Refer to VIBRATION DAMPER .

-- Remove bolts -1 to 11-.

Fig 1: Identifying Sealing Flange Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry up sealing flange.

Installing

Tightening specifications, refer to Figure.

Installation is in reverse order of removal, note the following:

CAUTION:

Risk of contaminating lubrication system with sealant residue.

Lay clean cloth over open part of oil pan.

-- Carefully remove sealant residue on cylinder block and oil pan.

Fig 2: Identifying Rotating Plastic Brush

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of eye injury.

Wear safety glasses.

-- Remove sealant residue on sealant flange, for example with a rotating plastic brush.

-- Clean sealing surfaces, must be free of oil and grease.

-- Cut tube nozzle at front marking (nozzle diameter approximately 2 mm).

Fig 3: Cutting Tube Nozzle At Front Marking (Nozzle Diameter Approx. 2 mm)

Courtesy of AUDI OF AMERICA, LLC

-- Apply a thin bead of sealant -arrows- on edge between cylinder block and oil pan.

Fig 4: Applying Thin Bead Of Sealant To Edge Between Cylinder Block And Oil Sump

Courtesy of AUDI OF AMERICA, LLC

-- Lightly coat lower sealing surface -shaded- on sealing flange with sealant.

Fig 5: Lightly Coating Lower Sealing Surface Of Sealing Flange With Sealant

Courtesy of AUDI OF AMERICA, LLC

-- Apply sealant bead -arrow- to clean sealing flange sealing surface as shown in illustration.

Fig 6: Applying Thin Bead Of Sealant To Clean Sealing Surface Of Sealing Flange

Courtesy of AUDI OF AMERICA, LLC

Thickness of sealant bead: 2 to 3 mm.

CAUTION:

Risk of plugging oil pump strainer with excess sealant.

Do not apply sealant bead thicker than indicated.

NOTE:

Sealing flange must be installed within 5 minutes of applying sealant.

-- Carefully slide sealing flange onto guide pins -arrows- on cylinder block using T10215.

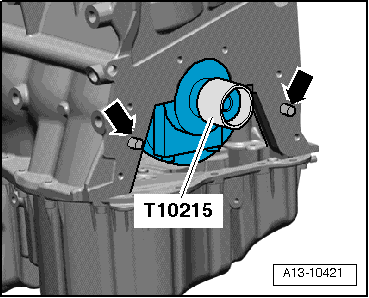

Fig 7: Sealing Flange Onto Guide Pins On Cylinder Block Using Assembly Tool T10215

Courtesy of AUDI OF AMERICA, LLC

-- Install sealing flange. Refer to Figure.

Fig 8: Identifying Sealing Flange Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install vibration damper. Refer to VIBRATION DAMPER .

-- Install ribbed belt. Refer to RIBBED BELT .
