Fastener Tightening Specifications

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Component

Bolt Size

Bracket for Clutch Pedal, Nut ⁽¹⁾, ⁽²⁾

Clutch Slave Cylinder, Bolt

Metal

Plastic

Crash Brace to Mounting Bracket/Steering Column

Pressure Plate

Vent Screw

4.5

⁽¹⁾	Always replace

⁽²⁾	For bolt tightening clarification, refer to PEDAL ASSEMBLY, MASTER CYLINDER ASSEMBLY OVERVIEW and see items -15 and 16-

Impact Bolster - Tightening Specification

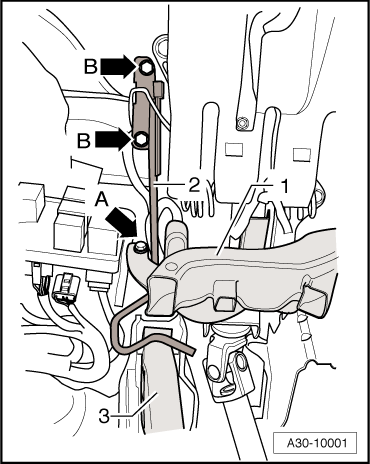

Fig 1: Identifying Crash Brace - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Insert impact bolster -2- and tighten 1 or 2 bolts -B arrows- depending on the version.

M6: 10 Nm
M8: 20 Nm
