Location On Transmission

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

The 6-speed manual transmission 02Q, AWD is installed in the Audi TT from MY 2007. Allocation, refer to CODE LETTERS, ASSEMBLY ALLOCATION, RATIOS AND CAPACITIES .

Location on Transmission

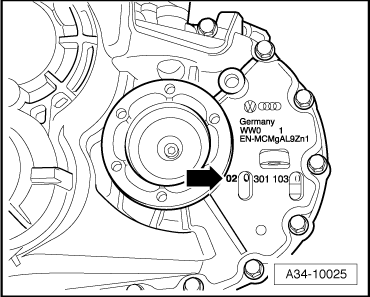

Fig 1: Locating Code Letters And Date On Manual Transmission 02Q All Wheel Drive

Courtesy of AUDI OF AMERICA, LLC

Engine code and build date -arrow 1-
Manual Transmission 02Q All Wheel Drive -arrow 2-

Manual Transmission 02Q AWD -arrow-

Fig 2: Locating Code Letters And Date On Manual Transmission 02Q All Wheel Drive

Courtesy of AUDI OF AMERICA, LLC

Transmission Code Letters and Build Date -arrow-

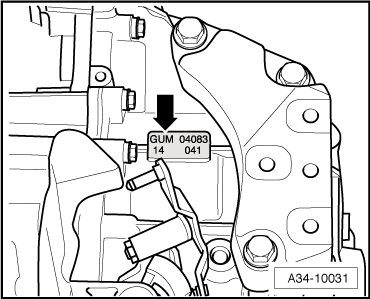

Fig 3: Locating Transmission Code Letters And Build Date

Courtesy of AUDI OF AMERICA, LLC

Example:	GUM	04	08	3
	I	I	I	I
	Code letters	Day	Month	Year 2003 of production

Additional data gives information about the factory.

NOTE:

The transmission code letters are also included on the vehicle data labels.
