Engine, Securing To Assembly Stand

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Sling 2024 A
Shop Crane VAS 6100
Engine and Transmission Holder VAS 6095

Transmission separated from engine.

-- Hook the 2024 A to engine and to the VAS 6100.

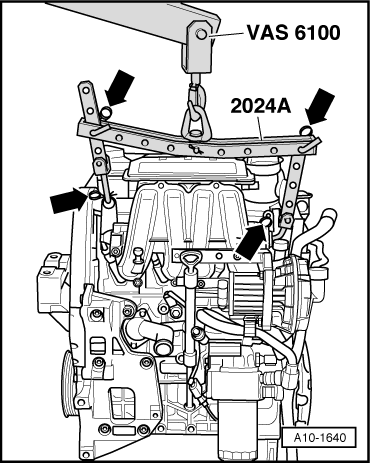

Fig 1: Identifying Engine Sling 2024 A Hooked To Engine And To Workshop Crane VAS 6100

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.

WARNING:

Lifting hooks and alignment pins on the engine sling must be secured with securing pins -arrows-.

-- Lift the engine off from the T10012 using the VAS 6100.

Secure engine on the VAS 6095 when working on engine.
