SUBFRAME Mount, Adjusting

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge 10 - 222 A
Spindle 10 - 222 A /11; quantity: 2
Special Hook 10 - 222 A /20; quantity: 2
Additional Hooks (2)10 - 222 A /2
Engine Support Basic Set T40091
Engine Support Supplement Set T40093 with Engine Supplement Left and Right T40093/3-2 and Engine Supplement Left and Right T40093/3-3

Adjusting

For the correct tightening specifications, refer to SUBFRAME OVERVIEW .

-- Disconnect the electrical connector on the mass airflow (MAF) sensor -G70- -3-.

Fig 1: Identifying Mass Air Flow (MAF) Sensor G70 Electrical Harness Connector, Clips & Front Air Intake Connector On Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Open clips -1 and 2- and remove air guide hose from MAF sensor.

-- Remove front air intake connector on lock carrier -4-.

-- Remove engine cover.

-- Remove Evaporative Emission (EVAP) canister with connected lines upward out of bracket -arrow- and lay aside.

Fig 2: Identifying EVAP Canister

Courtesy of AUDI OF AMERICA, LLC

-- Remove EVAP canister bracket.

-- Loosen coolant pipe -arrows-.

Fig 3: Locating Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

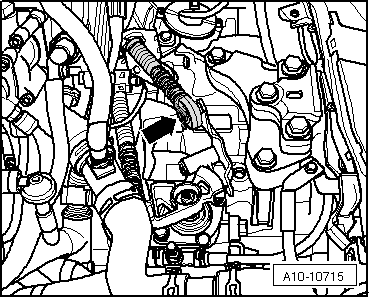

-- Disengage shift cable -arrow-.

Fig 4: Disengaging Shift Cable

Courtesy of AUDI OF AMERICA, LLC

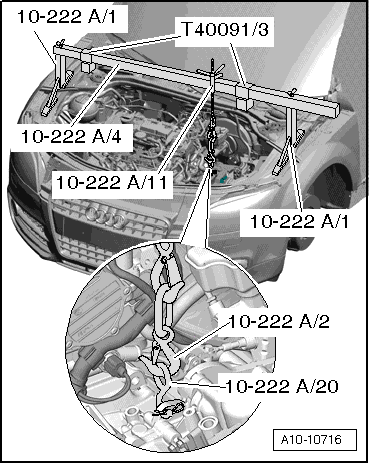

-- Position the 10 - 222 A on fender bolting edge with the following tool parts:

Fig 5: Positioning 10 - 222 A On Fender Bolting Edge

Courtesy of AUDI OF AMERICA, LLC

Bracket for engine 10 - 222 A /1, quantity: 2
Engine support bridge 10 - 222 A
Spindle 10 - 222 A /11 (spindle faces forward)
Additional hooks 10 - 222 A /2
Special hooks 10 - 222 A /20
Connectors T40091/3 qty. 2

-- Engage the 10 - 222 A /11 with the 10 - 222 A /2 and the 10 - 222 A /20 on transmission lifting eye.

-- Tension engine/transmission subframe with spindle.

-- Install the T40092/3-2 (left) and T40093/3-3 (right) on supports T40093/3.

Fig 6: Identifying Engine Support Bridge Adapter, Installation

Courtesy of AUDI OF AMERICA, LLC

-- Remove ground (GND) line from left longitudinal member.

-- Remove the left and right connecting bolt for front part of longmember.

-- Tighten the T40092/3-2 (left) and T40093/3-3 (right) on longmembers with bolts removed earlier -arrow-.

NOTE:

The illustration shows the left side of the vehicle.

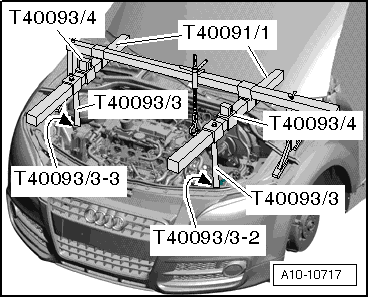

-- Place the square pipes T40091/1 with connector T40093/4 in the T40091/3 and T40093/3-3 as shown in the illustration.

Fig 7: Placing Square Pipes As Shown In Illustration

Courtesy of AUDI OF AMERICA, LLC

-- Slide the support T40091/2 into both connectors T40093/4 with slide T40093/5.

Fig 8: Sliding support T40091/2 into both connectors T40093/4 with slide T40093/5

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of accident due to loose engine support bridge spindles.

Secure the T40091/2 with connector pins and splints T40093/4.
Secure connector and supports with clamping bolts.

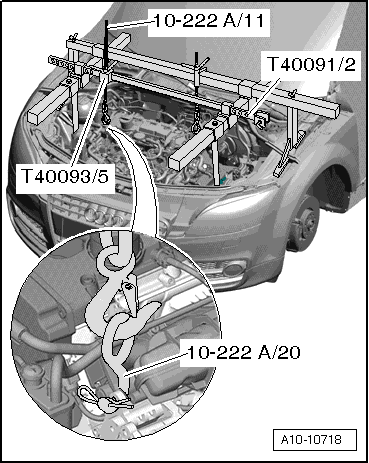

-- Install 10 - 222 A /11 with 10 - 222 A /20 on slide and on engine lifting eye.

-- Tension engine/transmission subframe by evenly tightening the 2 spindles.

-- Remove the bolts -arrows- from the engine assembly mounts one after the other, replace them (unless already done during engine installation) and screw them in loosely.

Fig 9: Identifying Engine Mountings Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- from the transmission assembly mounts one after the other, replace them (unless already done during engine installation) and screw them in loosely.

Fig 10: Identifying Bolts To Assembly Mounting On Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Loosen left and right support arm bolts approximately 2 turns.

-- Slide engine/transmission assembly with a pry bar between engine mount -1- and engine support -4- until the following dimensions are set:

Fig 11: Checking Dimensions At Engine/Transmission Assembly Mounting

Courtesy of AUDI OF AMERICA, LLC

Both bolt heads -2- must be parallel to edge of support arm -3-.
A distance of -x- = 16 mm must be present between engine mount -1- and engine support -4-.

NOTE:

Distance -x- = 16 mm can also be checked with suitable round stock.

-- Tighten subframe mount to transmission bolts.

-- The edges on the support arm -1- and transmission mount -2- are parallel on the transmission side.

Fig 12: Ensuring Edges On Support Arm And Transmission Mount Are Parallel

Courtesy of AUDI OF AMERICA, LLC

Dimension -x- same size on both sides of bracket.

-- Tighten subframe mount bolts.

The rest of the installation is performed in reverse order of removal, noting the following:

-- Tighten bolts for front part of longitudinal member. Refer to Removal and Installation .
