Removal And Installation: Radiator

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Drip Tray VAS 6208
Hose Clip Pliers V.A.G 1921

Removing

NOTE:

If there are small impressions on the fins, refer to COOLERS, CONDENSERS AND CHARGE AIR COOLERS .

WARNING:

Cover cap of expansion tank with a rag and open carefully, as hot steam or hot coolant may escape when opening.

-- Open cap of coolant expansion tank.

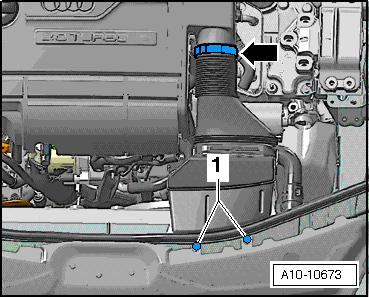

-- Separate intake tubes -arrow- with the V.A.G 1921.

Fig 1: Separate Intake Tubes

GWWA10-10673

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect front air intakes on lock carrier -1- and remove them.

-- Remove the bolts -1- from above.

Fig 2: Fan Shroud Bolts And Electrical Connector

GWWA19-10146

Courtesy of AUDI OF AMERICA, LLC

-- Remove center noise insulation fasteners -1 to 4-.

Fig 3: Center Noise Insulation Fasteners And Center Noise Insulation Panel

GWWA10-10600

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air duct clamps -1 and 2- for charge air cooler.

Fig 4: Air Cooler Air Duct

GWWA21-10051

Courtesy of AUDI OF AMERICA, LLC

-- Remove air duct -arrows-.

Fig 5: Air Guide Hose

GWWA10-10668

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

Fig 6: Fan Shroud Bolts And Electrical Connector

GWWA19-10146

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -3- and remove the fan shroud downward and off.

-- Place the VAS 6208 under engine.

-- Drain the coolant, by pulling off the lower coolant hose -arrows-.

Fig 7: Identifying Coolant Hose Quick Acting Coupling

GWWA19-10150

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect upper coolant hose from radiator -arrow-.

Fig 8: Identifying Upper Coolant Hose

GWWA10-10665

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- on the rear side of radiator.

Fig 9: Identifying Radiator Bolts

GWWA19-0487

Courtesy of AUDI OF AMERICA, LLC

-- Lift radiator slightly and remove downward and off.

Installing

Install in reverse order of removal. Note the following:

For the correct tightening specifications, refer to RADIATOR AND COOLANT FAN OVERVIEW

-- Air guide pipes with connector, installing. Refer to HOSE CONNECTIONS WITH CONNECTOR COUPLINGS, ASSEMBLING .

-- Fill with coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .
