Fastener Tightening Specifications
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
| Component | Bolt Size | Nm |
|---|---|---|
| Bracket | 10 | |
| Bracket for Radiator | 5 | |
| Connecting Pieces | 10 | |
| Coolant Fan, Nut | 10 | |
| Coolant Fan Control (FC) Thermal Switch | 35 | |
| Fan Rib | 5 | |
| Thermostat Housing | 10 |

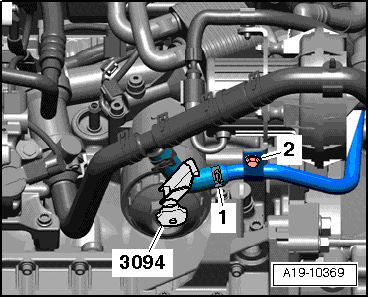

Coolant Pipe to Transmission Oil Cooler - Tightening Specifications
-- Tighten the bolt -1- to 10 Nm.

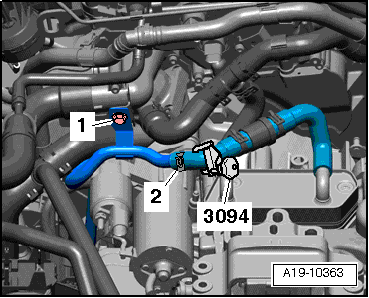

Coolant Pipe to Transmission Oil Cooler, Tightening Specifications
-- Tighten the bolt -1- to 10 Nm.
