Transmission, Removing

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine support bridge 10 - 222 A
Hook 10 - 222 A /10
Hose Clamps up to 25 mm dia. 3094
Transmission support 3282
Pin 3282/29
Adjustment plate 3282/42 A
Engine/transmission Jack V.A.G 1383 A
Engine Support Basic Set T40091
Engine Support Supplement Set T40093

Work procedure

Proceed as follows:

NOTE:

Observe general repair notes. Refer to REPAIR INSTRUCTIONS .
Observe cleanliness rules when working on transmissions. Refer to CLEAN WORKING CONDITIONS .
Reinstall cable ties that were loosened or cut off during removal at same locations during installation.

-- Place selector lever in position P.

-- Disconnect electrical harness connector -3- from mass air flow (MAF) sensor -g70-.

Fig 1: Identifying Mass Air Flow (MAF) Sensor G70 Electrical Harness Connector, Clips & Front Air Intake Connector On Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Open clips -1 and 2- and remove air guide hose from mass air flow (MAF) sensor -G70-.

-- Remove front air intake nozzle from lock carrier -4-.

-- Remove engine cover.

CAUTION:

Risk of destroying electronic components when disconnecting the battery.

Observe measures for disconnecting battery.

-- With ignition switched off, disconnect battery Ground (GND) wire. Refer to [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Description and Operation .

-- Remove securing plate -C-.

Fig 2: Bolts For Support Bracket, Pulling Off Retaining Clip Upward & Disconnecting Selector Lever Cable From Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Press securing plate -A- upward and remove.

-- Press selector lever cable off of selector shaft lever -arrow- and remove from bracket -D-.

NOTE:

Selector lever cable must not be bent or kinked.
Ignore items -1 and B-.

-- Disconnect protective boot cable ties -arrow-.

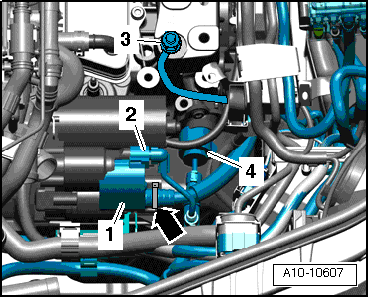

Fig 3: Disconnect The Ground (Gnd) Wire -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -2-.

-- Fold back protective boot -1- and disconnect B+ wire from starter solenoid switch.

-- Disconnect Ground (GND) wire -3-.

CAUTION:

There is a risk of destroying the control module (Mechatronic) with static discharge.

Do not touch contacts in transmission connector with hands.

-- To discharge static, touch vehicle ground with hand (without glove).

-- Disconnect electrical connector -4- on transmission by turning screw connection counterclockwise.

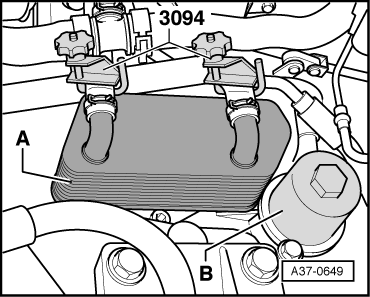

-- Clamp off coolant hoses on transmission oil cooler with Hose Clamps Up to 25 mm dia. 3094 and remove from cooler -A-.

Fig 4: Gear Oil Cooler Hoses Clamped Off Using - 3094 - And Gear Oil Cooler

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To prevent dirt from entering, seal open lines and connections with clean plugs or protective caps.

-- Remove lower starter bolt -2- (accessible from top).

Fig 5: Identifying Starter Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove upper starter bolt -1- and remove starter.

-- Remove transmission to engine connecting bolts -1, 3, 10- accessible from above.

Fig 6: Direct Shift Automatic Transmission To Engine Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen clamp -2-.

Fig 7: Intake Tube, Bolt, Nut And Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove nut -3-.

-- Disconnect electrical connector -4-.

NOTE:

Disregard -1-.

-- Position Engine Support bridge 10 - 222 A with the following tool components on upper edges of web plate:

Fig 8: Engine Support Bridge 10 - 222 A Component Overview

Courtesy of AUDI OF AMERICA, LLC

Bracket for Engine10 - 222 A /1, qty. 2
Adapter10 - 222 A /4
Connectors T40091/3, qty. 2

-- Install left adapter T40093/3-2 and right adapter T40093/3-3 on supports T40093/3.

Fig 9: Identifying Engine Support Bridge Adapter

Courtesy of AUDI OF AMERICA, LLC

-- Remove Ground (GND) wire from left long member.

-- Remove left and right connecting bolt for front part of long member.

-- Install adapters on long members with bolts that were removed earlier -arrow-.

NOTE:

The left side of the vehicle is shown in the illustration.

-- Insert square tube T40091/1 with connectors T40093/4 in connector T40091/3 and supports T40093/3 as shown in illustration.

Fig 10: Identifying Engine Support Bridge Components

Courtesy of AUDI OF AMERICA, LLC

-- Slide supports T40091/2 with slide T40093/5 into both connectors T40093/4.

Fig 11: Identifying Engine Support Bridge Components

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of an accident due to loose support bridge parts.

Secure support T40091/2 with pins and splints from connector T40093/4.
Secure connector and supports with locking bolts.

-- Install Bracket With Spindle and Hook 10 - 222 A /10 on slide and engine lifting eye.

-- Pretension engine/transmission assembly with spindle, but do not lift.

-- Remove both front wheels.

-- Remove noise insulation in center by loosening fasteners -1 through 4-.

Fig 12: Center Noise Insulation Fasteners And Center Noise Insulation Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right noise insulation -arrows-.

Fig 13: Remove Right Noise Insulation -Arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove noise insulation frame -arrow-.

Fig 14: Remove Noise Insulation Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove air guide hose to charge air cooler by loosening spring clamp -1- and hose clamp -2-.

Fig 15: Air Cooler Air Duct

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -1- and remove intake supports downward.

Fig 16: Intake Tube, Bolt, Nut And Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -2, 3, 4-.

-- Remove nuts -arrows- and move bracket with electrical wires forward.

Fig 17: Identifying Nuts And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Free up coolant hose from after-run coolant pump -V51- to radiator.

-- Remove right drive shaft heat shield -arrows-.

Fig 18: Identifying Protective Cap For Drive Axle On Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right drive shafts from transmission flange shaft. Refer to Removal and Installation .

-- Raise drive shafts and secure with cable ties.

NOTE:

Make sure drives axle protective coating is not damaged.

-- Remove bolt -arrow- and remove right flange shaft from transmission.

Fig 19: Right Flange Shaft Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1 through 3- and remove pendulum support.

Fig 20: Identifying Pendulum Support & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -3- on left front level control system sensor -G78-.

Fig 21: Electrical Connector On Left Front Level Control System Sensor G78

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -2-.

NOTE:

Ignore -1-.

-- Press left ball joint off wheel bearing housing. Refer to Removal and Installation .

Fig 22: Positioning Ball Joint Puller 3287 A On Ball Joint

Courtesy of AUDI OF AMERICA, LLC

-- Pull suspension strut outward slightly and support.

-- Remove bolts -1- and -2- and remove transmission plate -A-.

Fig 23: Identifying Transmission Support Plate And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Lower engine/transmission assembly on Engine Support bridge 10 - 222 A spindle until dimension -a- is created between transmission housing and transmission mount.

Fig 24: Dimension Between Transmission Housing And Transmission Bearing

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 100 to 110 mm

To remove Direct Shift transmission 02E, the Transmission support 3282 is equipped with adjustment plate 3282/42A and positioned on Engine/transmission Jack V.A.G 1383 A.

Fig 25: Direct-Shift Gearbox 02E

Courtesy of AUDI OF AMERICA, LLC

NOTE:

An all wheel drive vehicle is shown in the illustration, the mounting points for front and all wheel drive are the same.

-- Align arms of the transmission support to correspond with holes in adjustment plate 3282/42A.

-- Install support elements as shown on adjustment plate 3282/42A. The -retaining plate with hole- is used as a front support element.

-- Place Engine/transmission Jack V.A.G 1383 A under vehicle.

The arrow symbol on adjusting plate points in direction of travel.

-- Align transmission support 3282 parallel to transmission.

-- Install bolt3282/29 into transmission.

-- Attach -retaining plate with hole- firmly to transmission -arrow- as shown in illustration.

-- Insert last support elements in transmission as shown in illustration.

-- Support transmission with Engine/transmission Jack V.A.G 1383 A by lifting from below.

-- Remove remaining transmission to engine connecting bolts -5 through 9-.

Fig 26: Direct Shift Automatic Transmission To Engine Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Press off transmission from alignment sleeves.

-- Pull transmission from engine.

-- Carefully lower transmission using Engine/transmission Jack V.A.G 1383 A.

-- When lowering, change position of transmission with spindles on Transmission support 3282.
