Transmission Mount

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support bridge 10 - 222 A
Hook 10 - 222 A /10
Engine Support Basic Set T40091
Engine Support Supplement Set T40093

Removing

Proceed as follows:

-- Disconnect electrical harness connector -3- from mass air flow (MAF) sensor -G70-.

Fig 1: Identifying Mass Air Flow (MAF) Sensor G70 Electrical Harness Connector, Clips & Front Air Intake Connector On Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Open clips -1 and 2- and remove air guide hose from mass air flow (MAF) sensor -G70-.

-- Remove front air intake nozzle from lock carrier -4-.

-- Remove engine cover.

-- Position engine support bridge 10 - 222 A with the following tool components on upper edges of web plate:

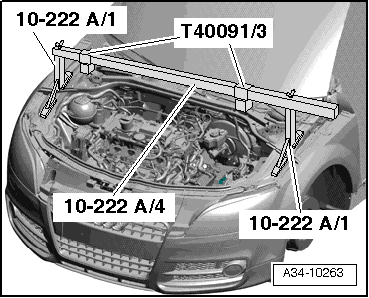

Fig 2: Engine Support Bridge 10 - 222 A Component Overview

Courtesy of AUDI OF AMERICA, LLC

Bracket for engine 10 - 222 A /1, qty. 2
Adapter 10 - 222 A /4
Connectors T40091/3, qty. 2

-- Install left adapter T40093/3-2 and right adapter T40093/3-3 on supports T40093/3.

Fig 3: Identifying Engine Support Bridge Adapter

Courtesy of AUDI OF AMERICA, LLC

-- Remove Ground (GND) wire from left long member.

-- Remove left and right connecting bolt for front part of long member.

-- Install adapters on long members with bolts that were removed earlier -arrow-.

NOTE:

The left side of the vehicle is shown in the illustration.

-- Insert square tube T40091/1 with connectors T40093/4 in connectorT40091/3 and supports T40093/3 as shown in illustration.

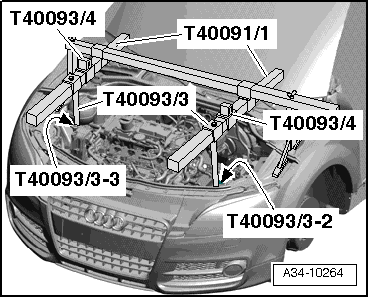

Fig 4: Identifying Engine Support Bridge Components

Courtesy of AUDI OF AMERICA, LLC

-- Slide supports T40091/2 with slide T40093/5 into both connectors T40093/4.

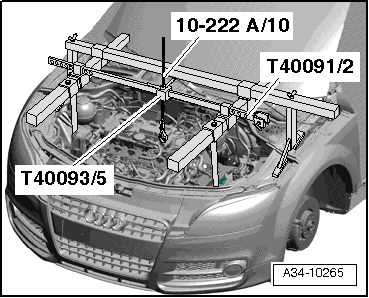

Fig 5: Identifying Engine Support Bridge Components

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of an accident due to loose support bridge parts.

Secure support T40091/2 with pins and splints from connector T40093/4.
Secure connector and supports with locking bolts.

-- Install bracket with spindle and Hook 10 - 222 A /10 on slide and engine lifting eye.

-- Pretension engine/transmission assembly with spindle, but do not lift.

-- Remove bolts -arrows-.

Fig 6: Identifying Engine Mount To Engine Mount Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Open wiring guide bracket -arrows-.

Fig 7: Open Wiring Router Bracket And Locating Cable Ties

Courtesy of AUDI OF AMERICA, LLC

-- Cut cable ties -1- and press electrical wires to side.

-- Unclip wiring guide.

-- Remove bolts -1- and remove transmission mount -A-.

Fig 8: Transmission Mount And Bolts

Courtesy of AUDI OF AMERICA, LLC

Installing

Tightening specifications, refer to SUBFRAME MOUNT ASSEMBLY OVERVIEW .

Installation is in reverse order of removal, note the following:

-- Tighten transmission mount -A-.

CAUTION:

Risk of damaging threads in transmission mount support arm due to bolts inserted crooked.

Before installing bolts -arrows-, transmission plate and transmission mount support arm must be absolutely parallel to each other. If necessary, raise rear of transmission with trolley jack.

Fig 9: Identifying Engine Mount To Engine Mount Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Raise transmission with engine support bridge spindle until transmission plate touches transmission mount support arm.

-- Adjust subframe mount. Refer to [For engine(s) CETA, CCTA] Diagnosis and Testing or refer to [For engine(s) CDMA] Diagnosis and Testing or refer to [For engine(s) CBRA] Diagnosis and Testing or refer to [For engine(s) BPY] Diagnosis and Testing .

-- Tighten transmission mount support arm on transmission plate.

-- Remove Engine Support bridge 10 - 222 A from engine.
