Selector Lever Scale Illumination

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Proceed as follows:

-- Engage parking brake.

-- Place selector lever in position N.

-- Switch ignition off and remove ignition key.

-- Carefully pry selector lever boot out of boot trim using a small screwdriver -arrow 1-.

Fig 1: Identifying Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

-- Pull selector lever boot upwards at both sides -arrows 2 and 3-.

-- Fold selector lever boot up.

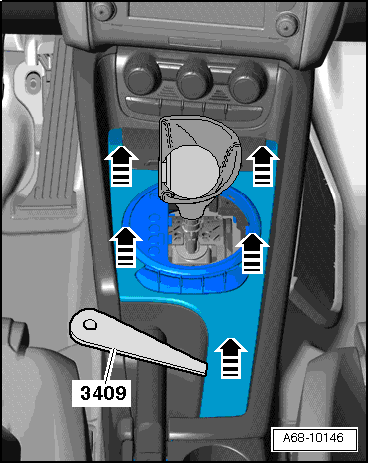

-- Pry center console trim out of console using Trim Removal Wedge3409 -arrows-.

Fig 2: Identifying Center Console Trim With Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connectors and remove center console trim.

-- Remove bolts -arrows- and remove selector lever boot trim -1- with selector lever scale illumination -L101-.

Fig 3: Slector Lever Scale Illumination -L101-

Courtesy of AUDI OF AMERICA, LLC

Installing

Tightening specification, refer to SELECTOR LEVER HANDLE AND SCALE ILLUMINATION ASSEMBLY OVERVIEW .

Installation is in reverse order of removal.
