Selector Lever Handle

Special tools and workshop equipment required

• Hose clamp pliers V.A.G 1275

Removing

Proceed as follows:

-- Engage parking brake.

-- Place selector lever in position N.

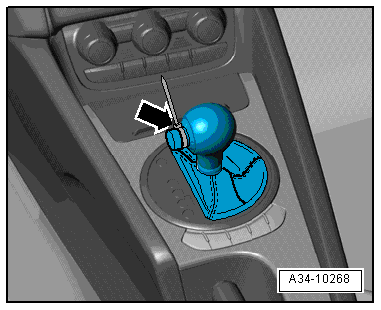

-- Secure locking button in extended position with a cable tie -arrow- as shown in illustration.

Fig 1: Securing Locking Button

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out selector lever boot with a small screwdriver at side -arrow 1-.

Fig 2: Removing Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

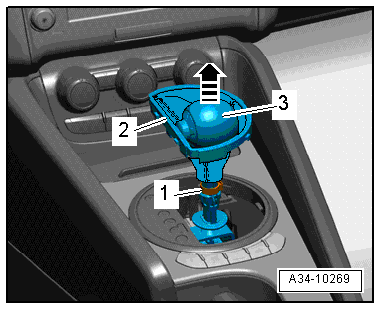

-- Pull selector lever boot upwards at both sides -arrows 2 and 3-.

-- Fold selector lever boot -2- upward over selector lever handle -3-.

Fig 3: Removing Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

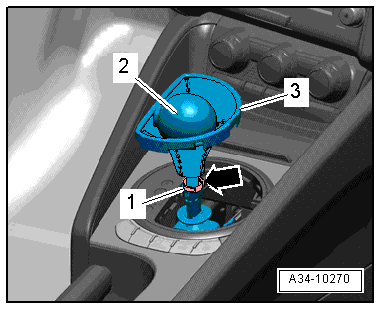

-- Open hose clamp -1-.

-- Remove selector lever handle together with selector lever boot -arrow- without touching locking button.

Installing

Install in reverse order, paying attention to the following:

NOTE:

To install, locking button on selector lever handle must be extended as far as stop and secured using a cable tie -arrow- or the assembly aid delivered from the factory for the new handle.

Fig 4: Securing Locking Button

Courtesy of AUDI OF AMERICA, LLC

If the locking button was not secured, it must not be pulled out of the selector lever handle with mechanical tools. Instead, position a compressed air gun at the bottom of the handle and press the locking button out with compressed air and secure it.

-- Place selector lever handle completely on selector lever.

• The locking button faces the driver.
• When doing this, handle must engage into ring groove of the selector lever.

-- Remove cable ties or assembly aid.

• The locking button mechanism engages in the selector lever vertical groove; if not, press locking button back into selector lever handle.

-- Bring hose clamp -1- into installation position.

Fig 5: Identifying Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

• Tab -arrow- on hose clamp faces to right and forward.

-- Clamp selector lever handle -2- securely to selector lever with hose clamp using Hose Clamp pliers V.A.G 1275.

-- Clip selector lever boot mounting frame -3- to boot trim.
