Transmission, Transporting
WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Shop crane VAS 6100
- Bracket T10013
Work procedure
To transport DSG transmission and set up transmission support 3282, use Bracket --.
-- Remove threaded studs from T10013 by releasing circlip.

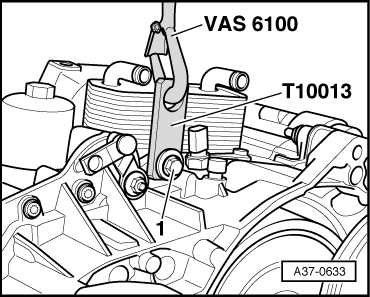

-- Secure T10013 to transmission lifting eye with an M8x40 bolt -1- and a washer with a 30 mm outer circumference.
-- Engage VAS 6100 on T10013.
CAUTION:
Risk of damaging transmission oil cooler when transporting.
- Guide transmission when transporting.
