Selector Mechanism Emergency Release, Performing

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

If voltage supply to selector lever lock solenoid is missing (battery discharged, fuse faulty) or the solenoid is faulty, the selector lever cannot be shifted out of P position. for example the vehicle cannot be moved because parking lock is engaged.

Proceed as follows:

-- Check fuses. Refer to the appropriate SYSTEM WIRING DIAGRAMS information.

-- Check battery voltage. Refer to [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .

-- If no malfunction is found in voltage supply, perform selector mechanism emergency release as follows:

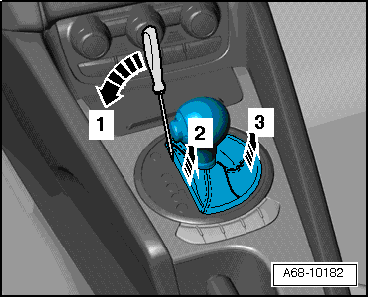

Fig 1: Removing Selector Lever Boot

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry selector lever boot out of boot trim using a small screwdriver -arrow 1-.

-- Pull selector lever boot upwards at both sides -arrows 2 and 3-.

-- Fold selector lever boot up.

-- Release selector lever lock solenoid -A- by pressing lever -B- inward -arrow- with a screwdriver -1- and hold in this position.

Fig 2: Release Selector Lever Lock Solenoid

Courtesy of AUDI OF AMERICA, LLC

The solenoid releases selector lever.

-- With solenoid released, press button on selector lever handle and shift selector lever out of P.

NOTE:

If selector lever is shifted back into P, it is mechanically locked in P by the selector lever lock solenoid and it must be released again.
