Overview - Switch Unit, Microswitch With Bracket

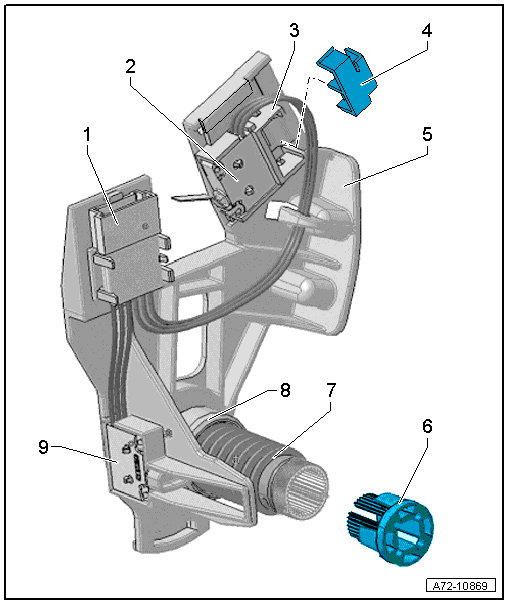

Fig 1: Exploded View Of Switch Unit

Courtesy of AUDI OF AMERICA, LLC

1. 6-Pin Connector
   • Clipped with the bracket
2. Backrest Lock Switch
   • Driver side: Driver Backrest Lock Switch -F211-
   • Front passenger side: Front Passenger Backrest Lock Switch -F212-
   • Also called a micro-switch
   • Adjusting. Refer To MICRO SWITCH, ADJUSTING, BACKREST LOCK SWITCH .
   • Checking. Refer To MICRO SWITCH, CHECKING, BACKREST LOCK SWITCH .
3. Slide
   • Moveable mount for the Driver Backrest Lock Switch -F211- or Front Passenger Backrest Lock Switch -F212-
4. Slide Retainer
   • Unclip to adjust the backrest lock switch
5. Bracket
6. Locking Bushing
   • Clipped to the spindle
7. Spindle
8. Spindle Nut
9. Backrest Forward Stop Switch
   • Driver side: Driver Seat Backrest Forward Stop Switch -F381-
   • Front passenger side: Front Passenger Seat Backrest Forward Stop Switch -F383-
   • Adjusting. Refer To MICRO SWITCH, ADJUSTING, BACKREST LOCK SWITCH .
   • Checking. Refer To MICRO SWITCH, CHECKING, BACKREST LOCK SWITCH .
