System Diagram [10/2013 - ]

WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

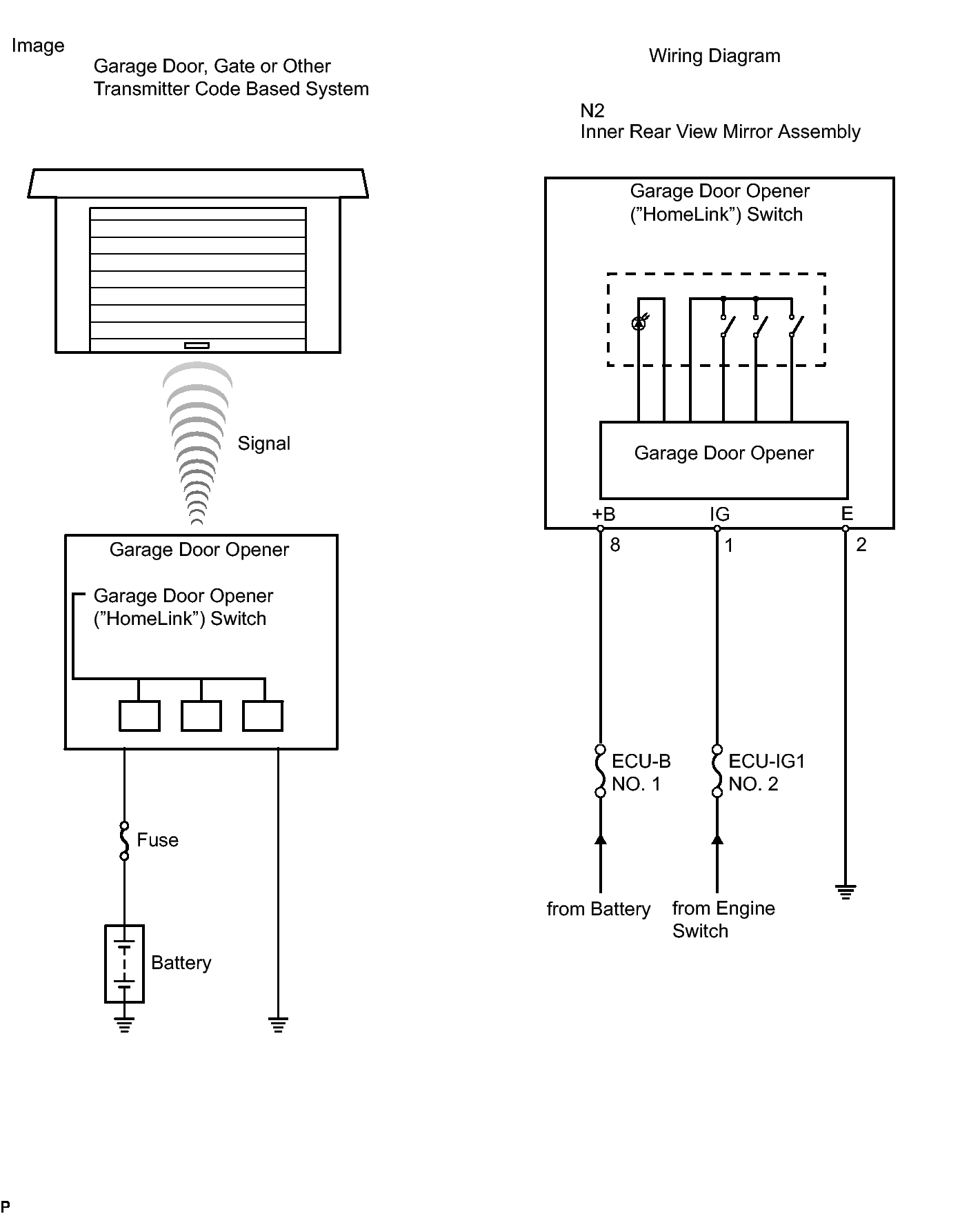

Fig 1: Garage Door Opener System Diagram
GTY369143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
