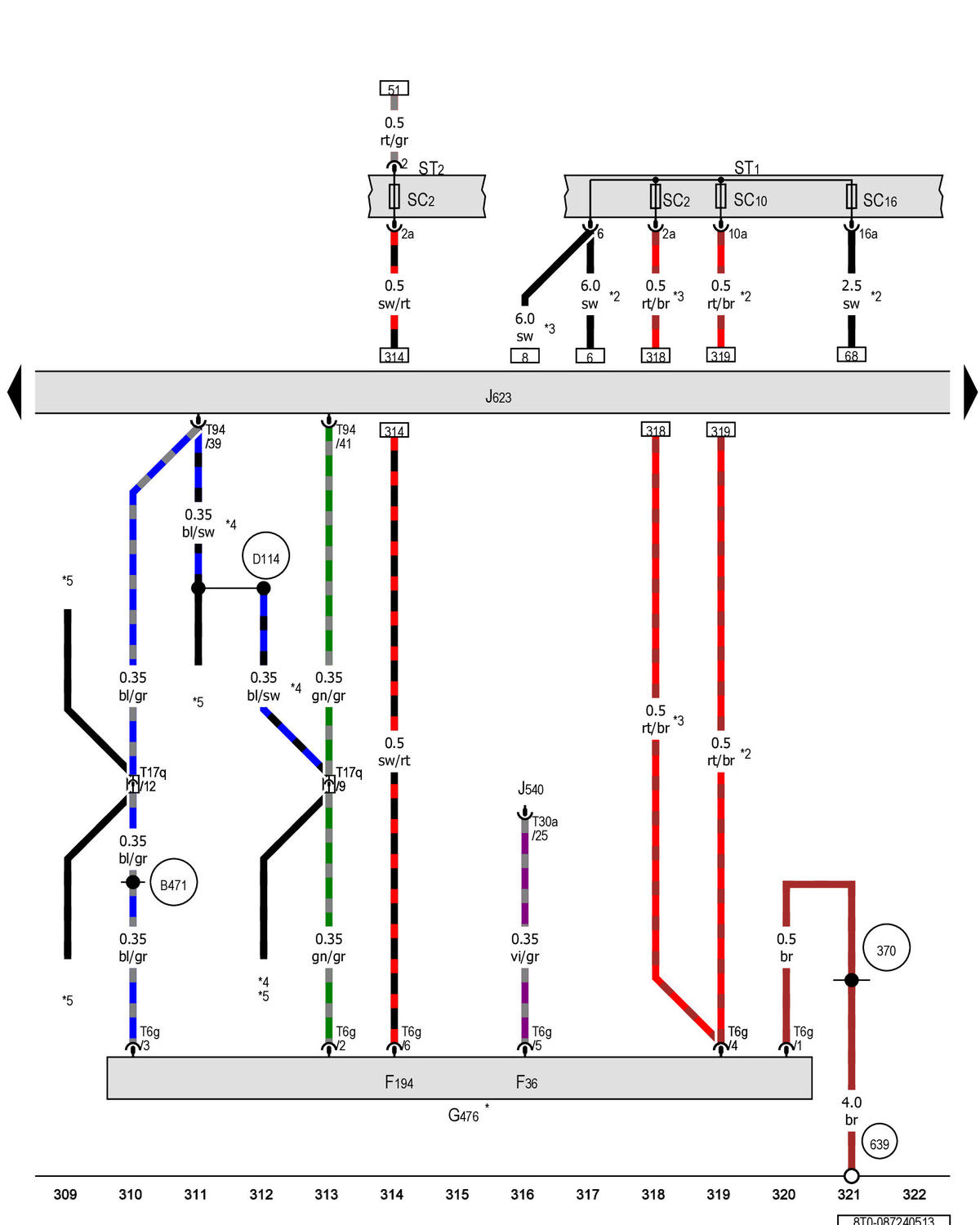

Clutch Position Sensor, Engine Control Module
F36
Clutch pedal switch Type:BT, Slpdok:, Aim:BTF36
F194
Clutch pedal starter interlock switch Type:BT, Slpdok:, Aim:BTF194
G476
Clutch position sensor Type:BT, Slpdok:, Aim:BTG476
J540
Electromechanical parking brake control module Type:BT, Slpdok:, Aim:BTJ540 Type:BT, Slpdok:, Aim:BTJ540
J623
Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623
ST1
Fuse panel 1
ST2
Fuse panel 2
SC2
Fuse 2 (on fuse panel C) Type:BT, Slpdok:, Aim:BTSC-
SC10
Fuse 10 (on fuse panel C) Type:BT, Slpdok:, Aim:BTSC-
SC16
Fuse 16 (on fuse panel C) Type:BT, Slpdok:, Aim:BTSC-
T6g
6-pin connector
T17q
17-pin connector, red Type:BT, Slpdok:, Aim:BTT17q
T30a
30-pin connector
T94
94-pin connector Type:BT, Slpdok:, Aim:BTT94
370 - Ground connection 5 (in main wiring harness)
639 - Ground connection on left A-pillar Type:VB, Slpdok:, Aim:VB639
B471 - Connection 7 (in main wiring harness)
D114 - Connection 12 (in engine compartment wiring harness)
* Only For Vehicles With A Manual Transmission
*2 From May 2009
*3 Through April 2009
*4 Only For Vehicles With Automatic Transmission
*5 Refer To Applicable Wiring Diagram For Automatic Transmission
