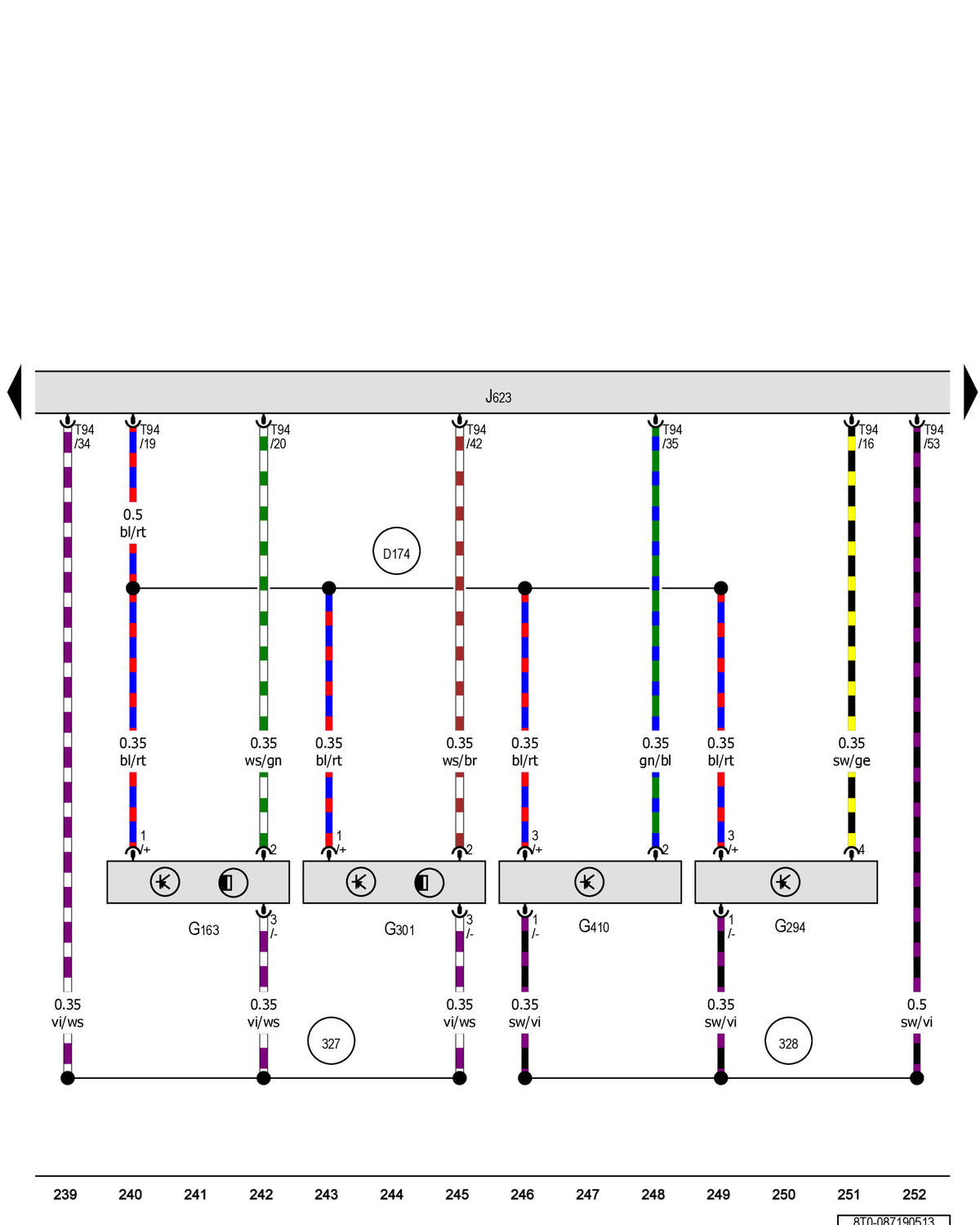

Camshaft Position Sensor 2, Brake Booster Pressure Sensor, Camshaft Position Sensor 4, Low Fuel Pressure Sensor, Engine Control Module

Courtesy of AUDI OF AMERICA, LLC

G163

Camshaft position sensor 2 Type:BT, Slpdok:, Aim:BTG163

G294

Brake booster pressure sensor Type:BT, Slpdok:, Aim:BTG294

G301

Camshaft position sensor 4 Type:BT, Slpdok:, Aim:BTG301

G410

Low fuel pressure sensor Type:BT, Slpdok:, Aim:BTG410

J623

Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623

T94

94-pin connector Type:BT, Slpdok:, Aim:BTT94

327  - Sensor ground connection (in engine compartment wiring harness)

328  - Sensor ground connection 2 (in engine compartment wiring harness)

D174  - Connection 5V (in engine pre-wiring harness) 2
