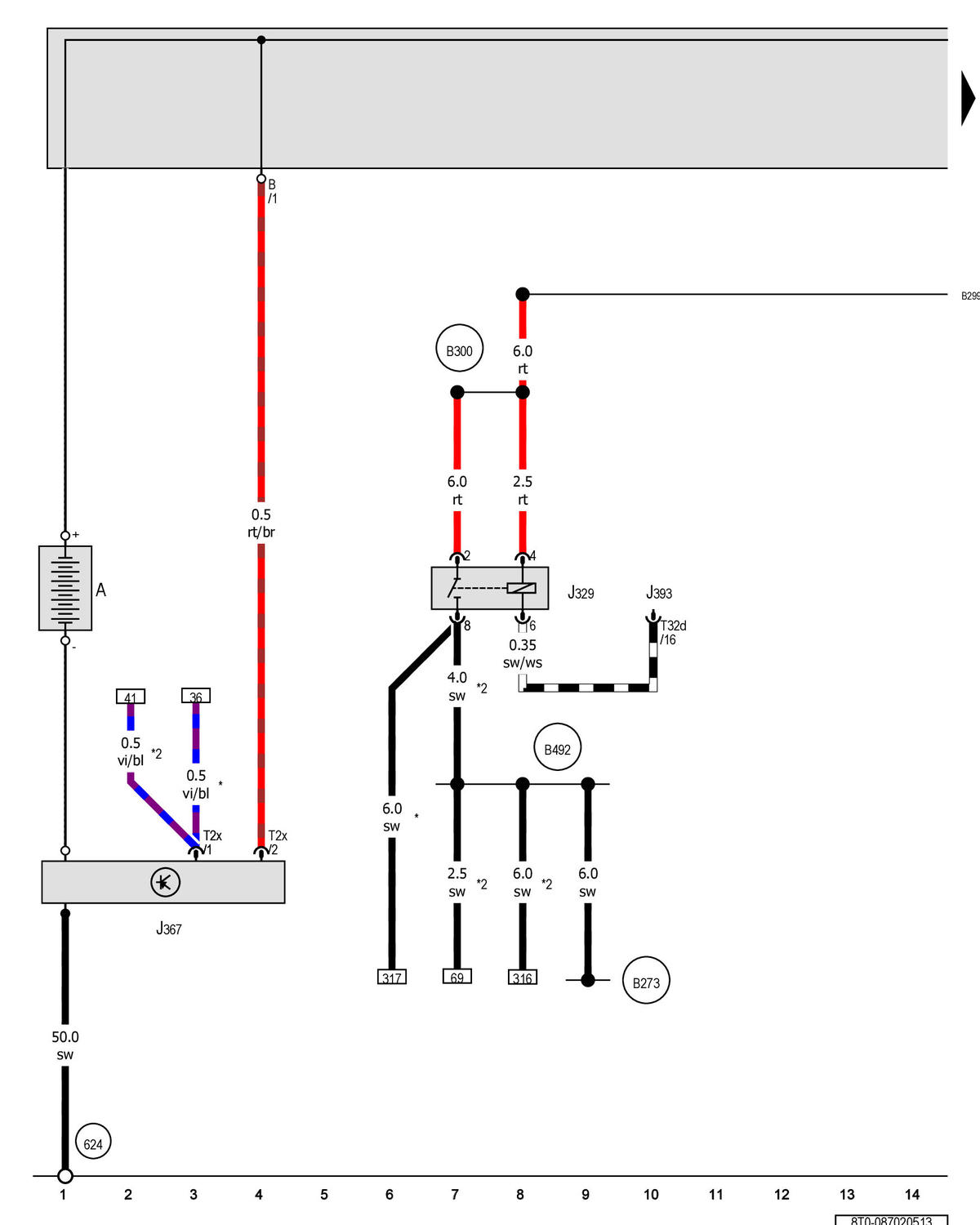

Battery, Terminal 15 Power Supply Relay, Battery Monitoring Control Module

Courtesy of AUDI OF AMERICA, LLC

A

Battery Type:BT, Slpdok:, Aim:BTA

J329

Terminal 15 power supply relay Type:BT, Slpdok:, Aim:BTJ329

J367

Battery monitoring control module Type:BT, Slpdok:, Aim:BTJ367

J393

Comfort system central control module Type:BT, Slpdok:, Aim:BTJ393

T2x

Double connector Type:BT, Slpdok:, Aim:BTT2x

T32d

32-pin connector Type:BT, Slpdok:, Aim:BTT32d

624  - Ground connection near starter battery Type:VB, Slpdok:, Aim:VB624

B273  - Positive connection (15) (in main wiring harness)

B299  - Positive connection 3 (30) (in main wiring harness)

B300  - Positive connection 4 (30) (in main wiring harness)

B492   - Positive connection 3 (15) (in interior wiring harness)

* From May 2009

*2 Through April 2009
