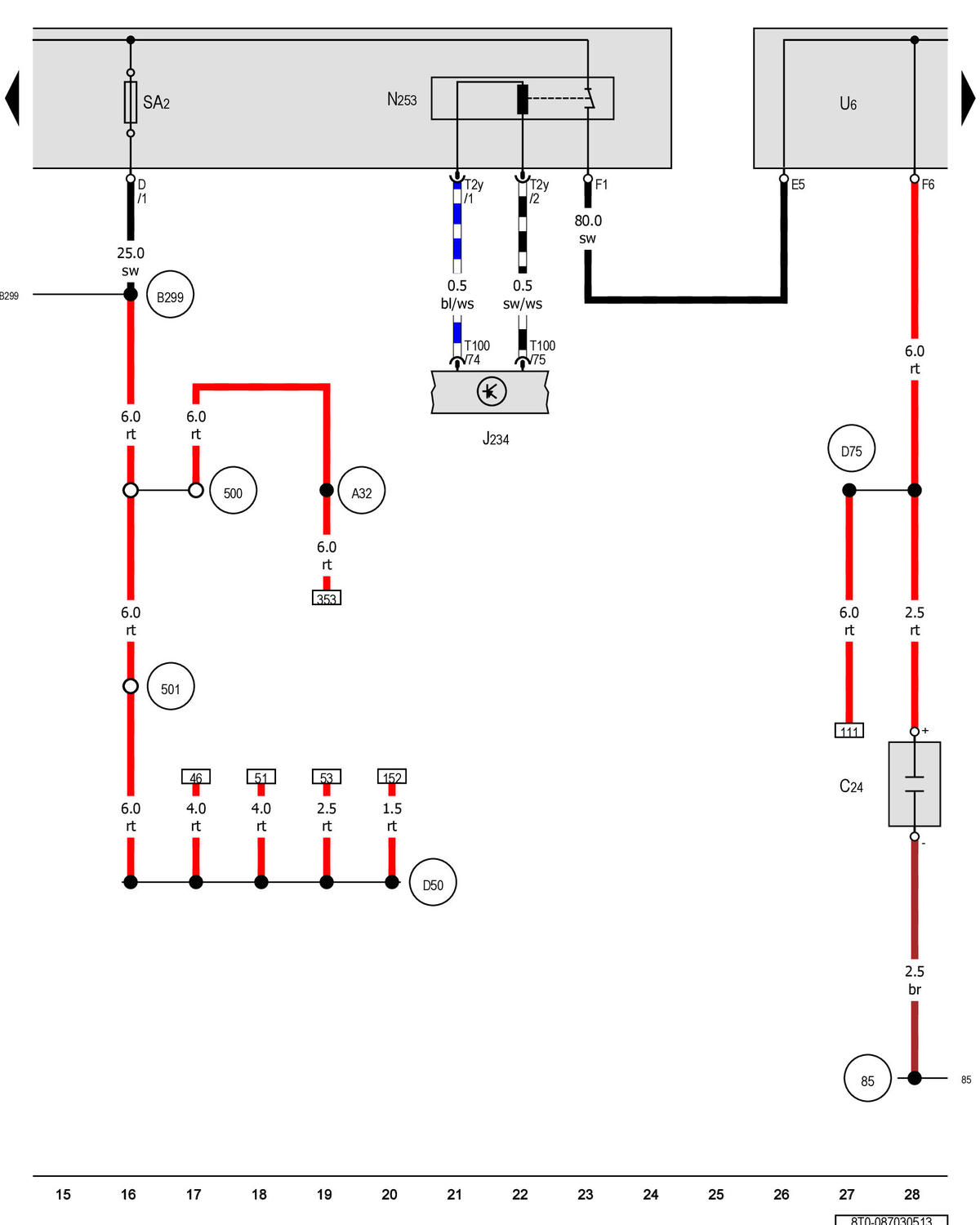

Battery Interrupt Igniter, Battery Jump Start Terminal
C24
Suppressor
J234
Airbag control module Type:BT, Slpdok:, Aim:BTJ234
N253
Battery interrupt igniter Type:BT, Slpdok:, Aim:BTN253
SA2
Fuse 2 (on fuse panel A) Type:BT, Slpdok:, Aim:BTSA-
T2y
Double connector
T100
100-pin connector Type:BT, Slpdok:, Aim:BTT100
U6
Battery jump start terminal
85 - Ground connection 1 (in engine compartment wiring harness)
500 - Terminal 30 threaded connection 1 (on relay panel) Type:VB, Slpdok:, Aim:VB500
501 - Terminal 30 threaded connection 2 (on relay panel) Type:VB, Slpdok:, Aim:VB501
A32 - Positive connection (30) (in instrument panel wiring harness)
B299 - Positive connection 3 (30) (in main wiring harness)
D50 - Positive connection (30) (in engine compartment wiring harness)
D75 - Positive connection 2 (30) (in engine compartment wiring harness)
