Rear Spoiler Gap Dimensions

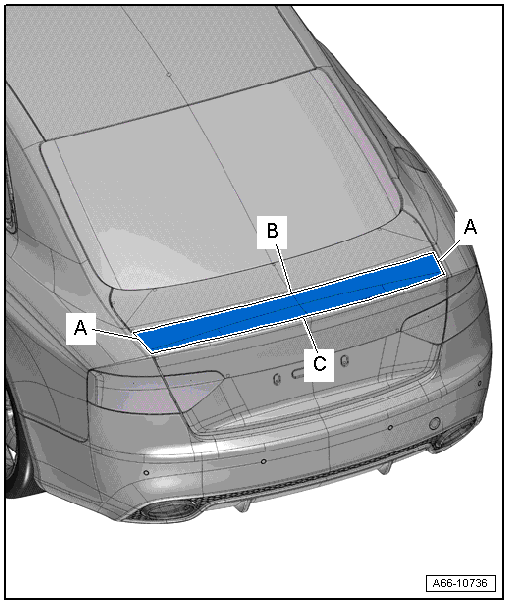

Fig 1: Identifying Rear Spoiler Gap Dimensions
GWWA66-10736
  1. A -

    Left Upper Rear Side Panel to Rear Spoiler

    • Gap dimension = 2.0 ± 0.5 mm
  2. B -

    Rear Lid to Rear Spoiler

    • Gap dimension = 2.0 ± 0.5 mm
  3. C -

    Rear Lid to Rear Spoiler

    • Gap dimension = 2.0 ± 0.5 mm
