Overview - Noise Insulation, AUDI RS5

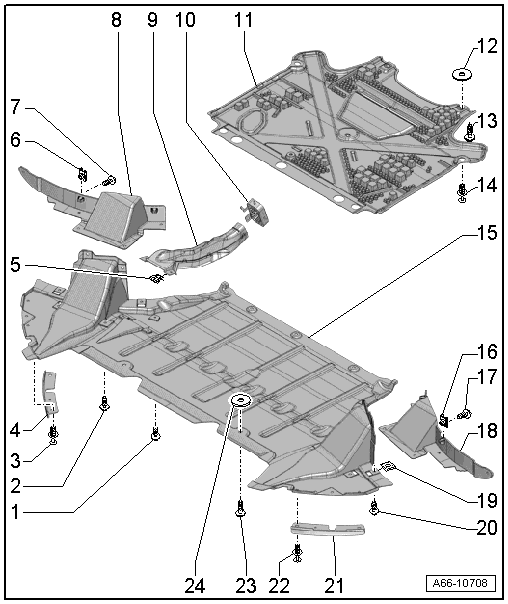

Fig 1: Identifying Underbody Trim Panel Audi RS 5

Bolt
- 5 Nm
- Quantity: 3
Quick Release
- Quantity: 4
Expanding Clip
- Quantity: 3
Right Spoiler Lip
- Removing and installing. Refer to SPOILER LIP, REMOVING AND INSTALLING .
Metal Nut
- Quantity: 3
Clip Nut
- Quantity: 2
Bolt
- 1.5 Nm
- Quantity: 2
Right Inner Wheel Spoiler
- Removing and installing. Refer to FRONT INNER WHEEL SPOILER, REMOVING AND INSTALLING .
Air Guide Channel
- For center differential
- Removing and installing. Refer to AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
Mount
- For air guide channel
Rear Noise Insulation
- For the transmission
- Removing and installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, AUDI RS5 .
Rubber Washer
Quick Release
- Quantity: 2
Expanding Clip
- Quantity: 2
Front Noise Insulation
- For the engine
- Removing and installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, AUDI RS5 .
Clip nut
- Quantity: 2
Bolt
- 1.5 Nm
- Quantity: 2
Left Inner Wheel Spoiler
- Removing and installing. Refer to FRONT INNER WHEEL SPOILER, REMOVING AND INSTALLING .
Metal Nut
- Quantity: 4
- For the quick release
Quick Release
- Quantity: 4
Left Spoiler Lip
- Removing and installing. Refer to SPOILER LIP, REMOVING AND INSTALLING .
Expanding Clip
- Quantity: 3
Quick Release
- Quantity: 5
Rubber Washer
