Level Control System Sensor: Removing

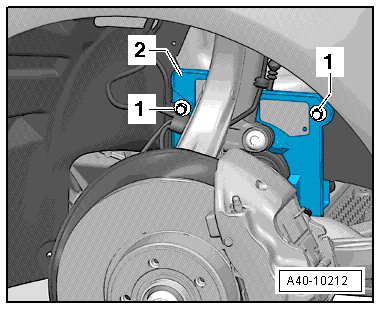

Fig 1: Identifying Nuts And Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1- and the cover -2-.

-- Disconnect the harness connector -2-.

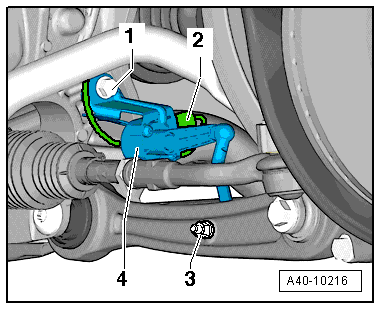

Fig 2: Disconnecting Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove nut -3-.

-- Remove the bolt -1-.

-- Remove level control system sensor -4-.
