ATF Level, Checking

WARNING: This page is about a different car, the 2010 Audi A4 and 2009 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Vehicle Diagnostic Tester
Used Oil Collection and Extraction Unit SMN372500
ATF Filler Tool VAG1924
Protective eyewear

Test Conditions

The transmission must not be in the emergency running
Move the vehicle onto a 4-column shop hoist or over a work pit so it is completely level.
The selector level is in "P".
The parking brake button should be activated to close the electro-mechanical parking brake.
Exhaust hose/-hoses of an exhaust extraction system connected.
The Air Conditioning (A/C) and the heater are off.
The Vehicle Diagnostic Tester is connected.
The ATF temperature must not be higher than 30 °C (86 °F) at the beginning of the test. Let the transmission must cool down first, if necessary.

NOTE:

The ATF temperature is read out on the Vehicle Diagnostic Tester.

The ATF level will vary depending on the temperature of the ATF.

It is possible to overfill the ATF if the level is checked when the temperature is too low.

It is possible to underfill the ATF if the level is checked when the temperature is too high.

Overfilling or underfilling will influence the function of the transmission.

Procedure

-- Select the following menu entries on the Vehicle Diagnostic Tester in Function/Component Selection in Guided Fault Finding :

Drive
0B6-Transmission
01-OBD-Capable Systems
02-Transmission Electronics
02-Transmission Electronics, Functions
02-Read Measured Value

-- Select the measured value Transmission Fluid Temperature on the Vehicle Diagnostic Tester.

-- Check the ATF temperature.

ATF Level, Checking and Correcting

NOTE:

The ATF level is checked at the ATF inspection plug.

The ATF level is correct if a small amount of fluid drips out of the inspection opening (this is normal as the fluid expands as it heats up) at an ATF temperature between 35 ° to 45 °C (95 ° to 113 °F) (for hot countries 50 °C (122 °F)).

CAUTION:

Danger of causing damage to the transmission.

Only use the ATF available as a replacement part for the automatic transmission 0B6.
Using other fluids can cause malfunctions or transmission failure.
The ATF filler tool must be clean and the ATF must not be mixed with any other oils.

-- Fill the reservoir on the ATF Filler Tool VAG1924 with the ATF for the automatic transmission 0B6; for the correct ATF specification.

Fig 1: ATF Filling System VAG 1924

Courtesy of AUDI OF AMERICA, LLC

-- Secure reservoir of ATF Filler Tool VAG1924 as high as possible on vehicle.

CAUTION:

Danger of causing damage to the transmission.

Engine must not be started if only a small amount or no ATF is in the transmission after repair work or after significant ATF loss.
In this case, pre-filling is necessary. Refer to ATF, DRAINING AND FILLING .

-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

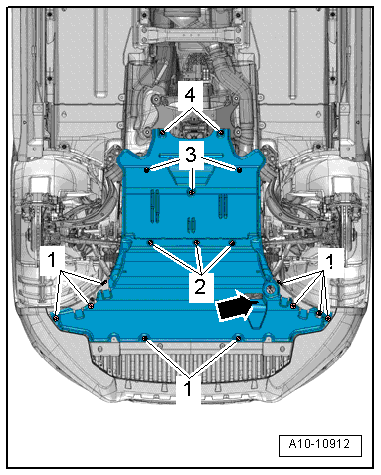

Fig 2: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Start the engine with the selector lever in "P".

-- While pressing the brake pedal and with the vehicle idling, shift through all the selector lever positions ("P", "R", "N", "D", "S") leaving each position engaged for at least 10 seconds.

-- Move the selector lever into "N".

-- Increase the RPM to 2000 and hold it there for at least 60 seconds.

-- Move the selector lever into "P".

-- Run the engine at idle.

-- Place the Used Oil Collection and Extraction Unit SMN372500 under the transmission.

WARNING:

Danger of eye injury.

Wear protective eyewear.

-- When ATF temperature of 35 °C (95 °F) is reached, remove the ATF inspection plug -arrow B- and drain off any excess ATF.

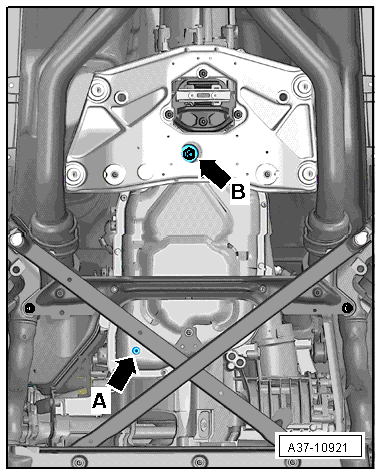

Fig 3: Identifying ATF Drain Plug -Arrow A-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The ATF inspection plug is accessible through the opening on the tunnel crossmember.

If ATF drips from the ATF inspection opening before the ATF has reached 40 °C (104 °F), the ATF level -arrow- is OK.

Fig 4: Correct ATF Level
Courtesy of AUDI OF AMERICA, LLC

NOTE:

The ATF inspection plug must be installed again before the ATF reaches a temperature of 45 °C (113 °F) (50 °C (122 °F) with hot climates).

-- Tighten the ATF check plug with the new seal -arrow- to 8 Nm ± 10%. The ATF level test is now completed.

Fig 5: ATF Inspection Plug Gasket

Courtesy of AUDI OF AMERICA, LLC

-- Install the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

If no ATF drips out of the ATF inspection opening when the temperature has reached 40 °C (104 °F):

ATF, Filling

NOTE:

The ATF inspection plug must be installed again before the ATF reaches 45 °C (113 °F) (50 °C (122 °F) for countries with hot climates). Let the transmission cool down and check again.

-- Guide filler hook of ATF Filler Tool VAG1924 from underneath into an opening in the cap -arrow-, do not push cap up and in while doing so.

Fig 6: Fill With ATF Using VAG 1924

Courtesy of AUDI OF AMERICA, LLC

-- Add ATF using ATF Filler Tool VAG1924 until ATF drips from the check hole. (approximately 4.5 to 5 liters (4.75 to 5.28 qts))

NOTE:

Too little or too much ATF will impair the transmission.

-- Tighten the ATF check plug with the new seal -arrow- to 8 Nm ± 10%. The ATF level test is now completed.

Fig 7: ATF Inspection Plug Gasket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ATF residue on the tunnel crossmember and clean the crossmember thoroughly.

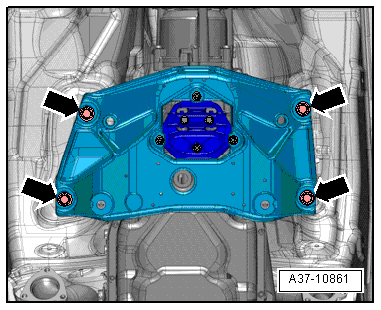

Fig 8: Identifying Tunnel Crossmember

Courtesy of AUDI OF AMERICA, LLC

NOTE:

There are several recesses on the top side of the tunnel crossmember where leaking ATF can collect.

They must be cleaned thoroughly.

Ignore -arrows-.

-- Install the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
