Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

After installing the torsion bar, use your hand to open and close the luggage door. Make sure the luggage door can open and close smoothly.

  1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE  See step  1
  2. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE  See step  2
  3. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP  See step  3
  4. REMOVE LUGGAGE COMPARTMENT DOOR COVER  See step  4
  5. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
    1. Remove the luggage compartment floor mat.
  6. REMOVE SPARE WHEEL COVER PAD LH (for Full Size Spare Tire)
    1. Remove the spare wheel cover pad LH.
  7. REMOVE SPARE WHEEL COVER PAD RH (for Full Size Spare Tire)
    1. Remove the spare wheel cover pad RH.
  8. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
    1. Remove the 2 bolts.

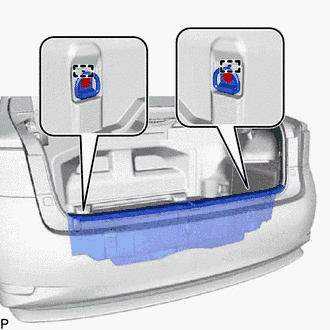

      Fig 1: Luggage Hold Belt Striker Assembly (For Rear Side), Guides And Bolts
      GTY413156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the 2 luggage hold belt striker assemblies.
  9. REMOVE REAR FLOOR FINISH PLATE
    1. Using a clip remover, remove the 3 clips.

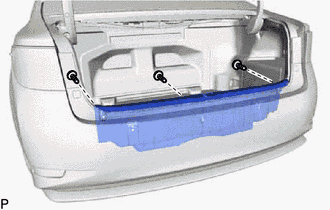

      Fig 2: Identifying Rear Floor Finish Plate And Clips
      GTY413167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 clips and remove the rear floor finish plate.

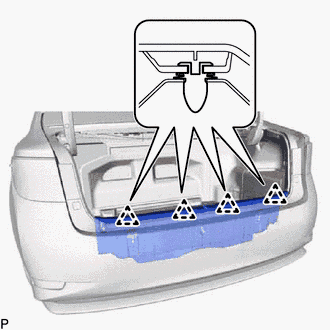

      Fig 3: Identifying Rear Floor Finish Plate And Clips
      GTY413168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER
    1. Disengage the 8 fasteners and remove the luggage compartment front trim cover.

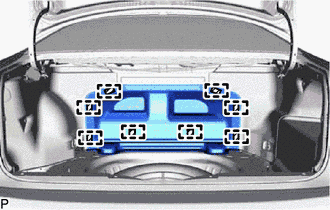

      Fig 4: Identifying Luggage Compartment Front Trim Cover And Fasteners
      GTY419686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)
    1. Remove the bolt.

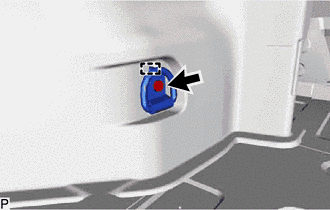

      Fig 5: Identifying Luggage Hold Belt Striker Assembly (For LH Side), Guide And Bolt
      GTY413171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the luggage hold belt striker assembly.
  12. REMOVE ROPE HOOK (for LH Side)
    1. Disengage the 2 claws and remove the rope hook as shown in the illustration.

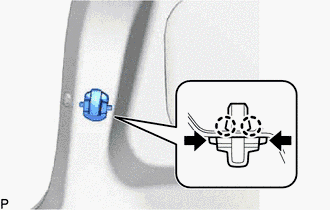

      Fig 6: Identifying Rope Hook (For LH Side) Claws
      GTY413173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH
    1. Using a clip remover, remove the 3 clips.

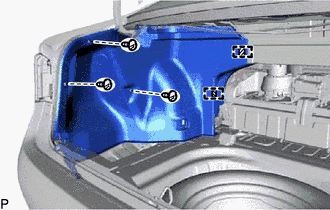

      Fig 7: Identifying Luggage Compartment Inner Trim Cover LH And Clips
      GTY419684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 fasteners and remove the luggage compartment inner trim cover LH.
  14. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
    1. Remove the bolt.

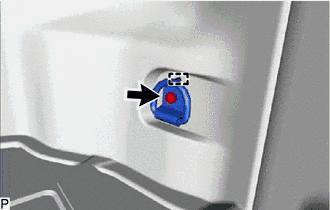

      Fig 8: Identifying Luggage Hold Belt Striker Assembly (For RH Side) Bolt
      GTY413061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the luggage hold belt striker assembly.
  15. REMOVE ROPE HOOK (for RH Side)
    1. Disengage the 2 claws and remove the rope hook as shown in the illustration.

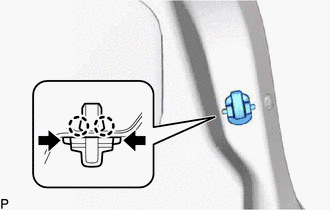

      Fig 9: Identifying Rope Hook (For RH Side) Claws
      GTY413159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/o Power Trunk Lid System)
    1. Using a clip remover, remove the 3 clips.

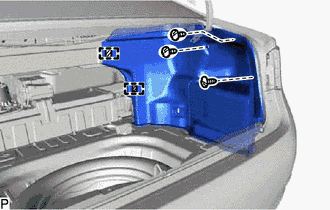

      Fig 10: Identifying Luggage Compartment Inner Trim Cover RH And Clips
      GTY413058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 fasteners and remove the luggage compartment inner trim cover RH.
  17. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ Power Trunk Lid System)
    1. Using a clip remover, remove the 2 clips.

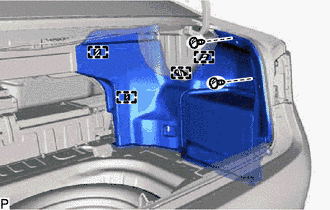

      Fig 11: Identifying Luggage Compartment Inner Trim Cover RH And Clips
      GTY413180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 fasteners and remove the luggage compartment inner trim cover RH.
  18. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH (w/ Power Trunk Lid System)  See step  14
  19. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH  See step  12
  20. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH  See step  23
  21. REMOVE LUGGAGE CLOSER MOTOR ASSEMBLY (w/ Power Trunk Lid System)  See step  16
  22. REMOVE LUGGAGE DOOR HINGE TORSION BAR LH
    1. Put protective tape around the luggage door hinge.

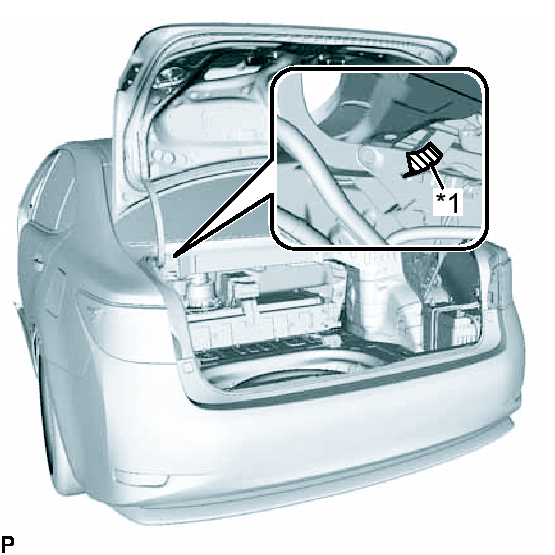

      Fig 12: Identifying Protective Tape Around Luggage Door Hinge
      GTY403213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Disengage the 2 claws as shown in the illustration.

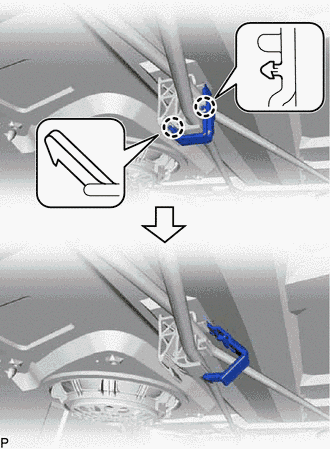

      Fig 13: Identifying Luggage Door Hinge Torsion Bar LH Claws
      GTY419687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the luggage door hinge torsion bar LH from the luggage compartment door torsion bar support as shown in the illustration.

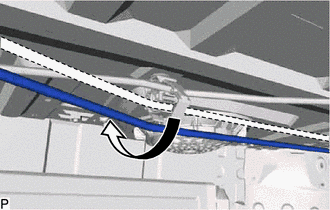

      Fig 14: Disconnecting Luggage Door Hinge Torsion Bar LH
      GTY413174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, disconnect the luggage door hinge torsion bar LH from the luggage door hinge and the left side of the vehicle body as shown in the illustration.
      • SST: 09804-24010

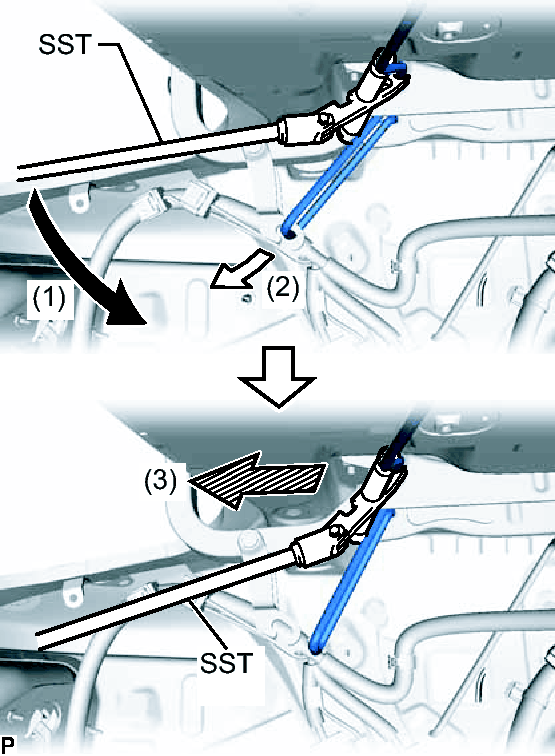

      Fig 15: Disconnecting Luggage Door Hinge Torsion Bar LH Using SST
      GTY416692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the luggage door hinge torsion bar LH from the right side of the vehicle body as shown in the illustration.

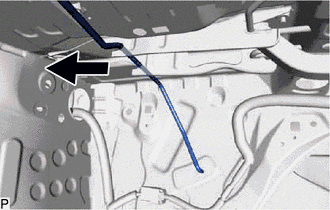

      Fig 16: Removing Luggage Door Hinge Torsion Bar LH
      GTY419663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE LUGGAGE DOOR HINGE TORSION BAR RH
    1. Put protective tape around the luggage door hinge.

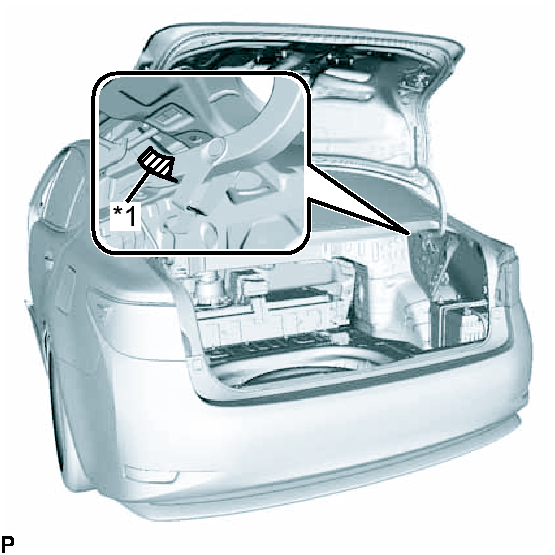

      Fig 17: Identifying Protective Tape Around Luggage Door Hinge
      GTY412843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Disconnect the luggage door hinge torsion bar RH from the luggage compartment door torsion bar support as shown in the illustration.

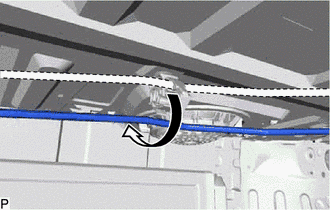

      Fig 18: Disconnecting Luggage Door Hinge Torsion Bar RH
      GTY413064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, disconnect the luggage door hinge torsion bar RH from the luggage door hinge and the right side of the vehicle body as shown in the illustration.
      • SST: 09804-24010

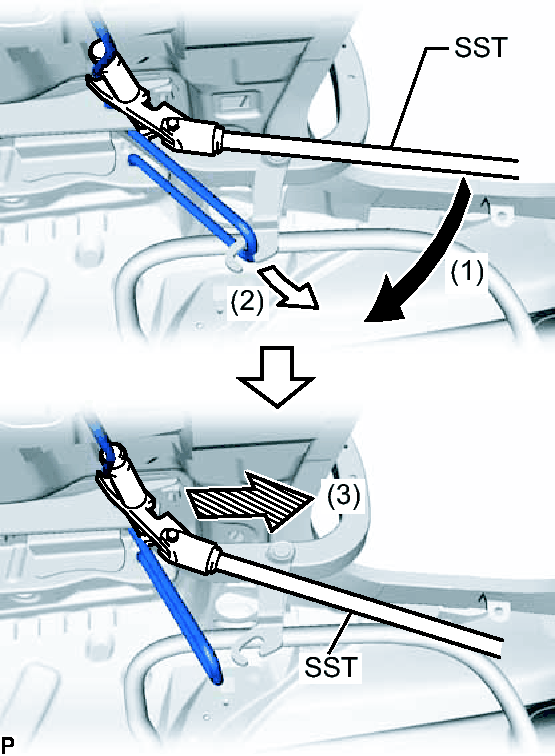

      Fig 19: Disconnecting Luggage Door Hinge Torsion Bar RH Using SST
      GTY414419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the luggage door hinge torsion bar RH from the left side of the vehicle body as shown in the illustration.

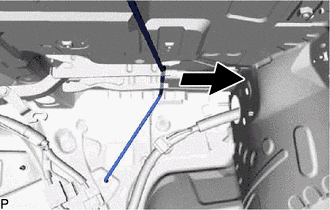

      Fig 20: Removing Luggage Door Hinge Torsion Bar RH
      GTY413073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT
    1. Remove the luggage compartment door torsion bar support as shown in the illustration.

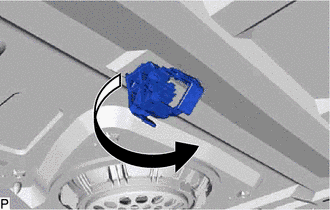

      Fig 21: Removing Luggage Compartment Door Torsion Bar Support
      GTY419664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure to replace the luggage compartment door torsion bar support with a new one.
