Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING: Removing

-- Move the passenger seats as far back as possible.

-- Turn off the ignition.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Disconnect the connector -A- and -B-.

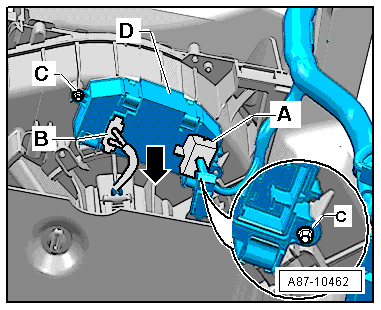

Fig 1: Disconnecting Connectors
GWWA87-10462Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -C-.

WARNING:

The heat sink on Fresh Air Blower Control Module -J126- may be hot.

-- Remove the Fresh Air Blower Control Module -J126- -D- from the air intake housing.
