Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition.

-- Carefully pry the Sunlight Photo Sensor -G107- -A- out of the defroster vent -B- (for the windshield) using a small screwdriver. Refer to -item 7- OVERVIEW - INSTRUMENT PANEL .

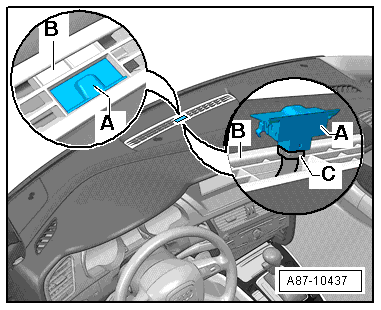

Fig 1: Removing Sunlight Photo Sensor
GWWA87-10437Courtesy of AUDI OF AMERICA, LLC
NOTE:

While doing so, do not damage the surface of the cover for the Sunlight Photo Sensor -G107- -A- and the defroster vent -B-.

-- Disconnect the connector -C-.
