Coolant, Draining And Filling: Draining
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
There is a risk of injury if the radiator fan turns on by itself.
- The coolant fan can come on even when the ignition is turned off, for example, caused by the heat still in the engine compartment.
WARNING:
Risk of scalding due to hot steam and hot coolant.
- The coolant system is under pressure when the engine is warm.
- Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.
-- Open the coolant reservoir cap.
-- Remove the front noise insulation -1-, refer to OVERVIEW - NOISE INSULATION .
NOTE:
Collect escaping coolant in a clean container for disposal or reuse.
-- Place the Shop Crane - Drip Tray VAS6208 under engine.
-- Remove the drain plug -1- and drain the coolant.
NOTE:
Ignore item -2-.
-- Loosen the hose clamp -arrow-, remove the coolant hose from the oil cooler and drain the coolant.
NOTE:
The installation location is shown with the engine removed.
Ignore item -1-.

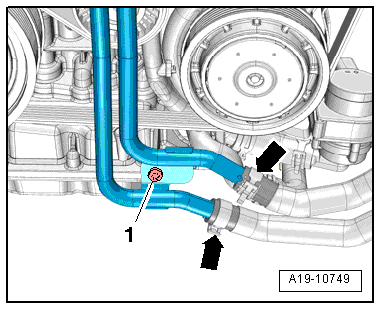

-- Loosen the clamps -arrows-, drain any remaining coolant and then remove the coolant hoses from the left front coolant pipes.
