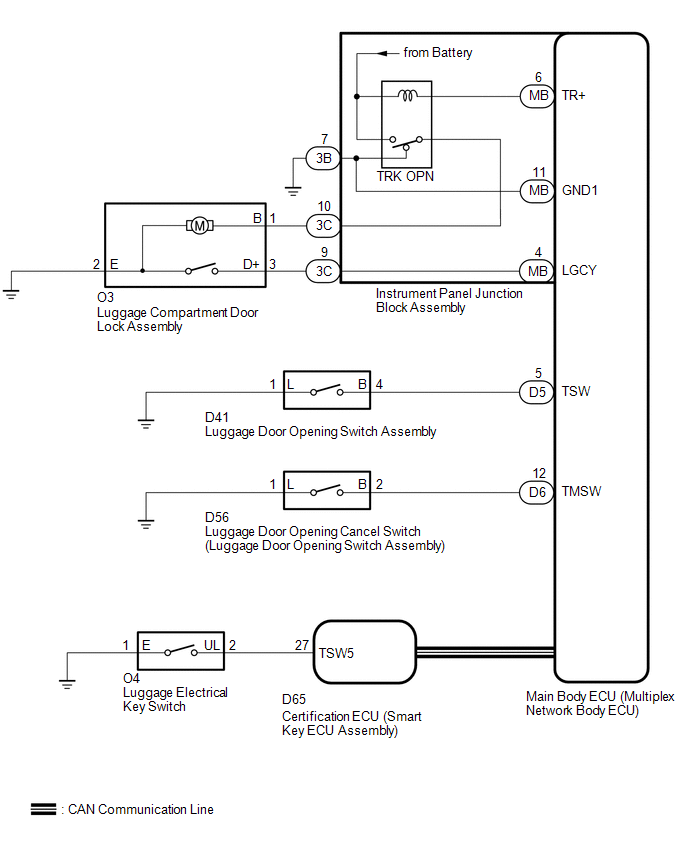

System Diagram [10/2013 - ]
WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 COMMUNICATION TABLE
| Sender |
Receiver |
Signal |
Line |
| Certification ECU (Smart Key ECU Assembly) |
Main Body ECU (Multiplex Network Body ECU) |
Luggage compartment door lock assembly open operation signal |
CAN |
