Transmission Identification

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Code Letters, Location on Transmission

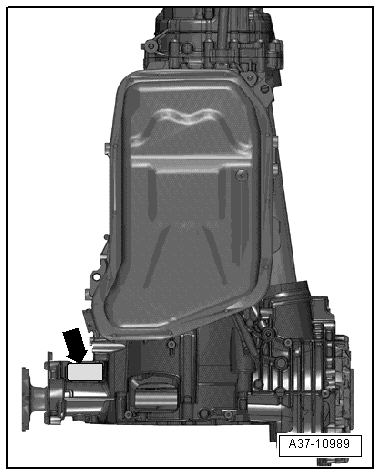

Fig 1: Code Letters, Location On Transmission

Courtesy of AUDI OF AMERICA, LLC

Transmission code letters are located on the data plate under the transmission. Type plate installed location -arrow-.

Transmission Code and Transmission Serial Number

Fig 2: Transmission Code and Serial Number Location

Courtesy of AUDI OF AMERICA, LLC

Example:

Transmission serial number
Parts list number
Manufacturer Transmission Code: 8HP-55
Example of a transmission code: MNX

NOTE:

The transmission code letters are also included on the vehicle data labels.

Vehicle data label location. Refer to appropriate service information
