CHARGE AIR SYSTEM, CHECKING FOR LEAKS, WITH Vehicle Diagnostic Tester

WARNING: This page is about a different car, the 2014 Volkswagen Touareg and 2013 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Turbo System Tester Kit: VAG1687
Turbo System Tester Kit - Adapter 3: VAG1687/3
Turbo System Tester Kit - Adapter 11: VAG1687/11
Turbo System Tester Kit - Adapter 16: VAG1687/16
Turbo System Tester Kit - Adapter 17 : VAG1687/17

Procedure

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -arrows- to remove the air duct pipe.

Fig 1: Air Guide Pipe, Remove/Install

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the crankcase ventilation hose -1- from the turbocharger. Press the releases to do this.

Fig 2: Identifying Crankcase Ventilation Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Depending on the market-specific vehicle version, crankcase ventilation hoses may be used that cannot be removed from the cylinder head cover without being destroyed.

Do not remove the hose on the cylinder head cover.

-- Connect the connector for the crankcase ventilation to the turbocharger with : VAG1687/17 .

Fig 3: Identifying Adapter VAG 1687/17

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

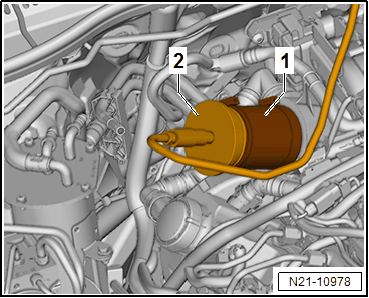

-- Connect the : VAG1687/11 -2- with the : 1687/16 -1- to the turbocharger.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Prepare the : VAG1687 as follows:

Fig 4: Connecting Pressurized Air Hose To Testing Unit For Turbo Charger V.A.G 1687

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Completely remove the pressure regulating valve -2- and close the valves -3 and 4-.

The knob must face upward so the pressure regulating valve -2- can be turned.

-- Connect the : VAG1687 to compressed air -1- with a commercially available intermediate piece.

NOTE:

If there is water in the viewing glass, drain it through the water drain plug -6-.

-- Open the valve -3-.

CAUTION:

There is a risk of damage if the pressure is set too high.

The pressure must not exceed 0.5 bar (7.2 psi)!

-- Set the pressure to 0.5 bar (7.2 psi) using the pressure regulating valve -2-.

-- Open the valve -4- and wait until the test circuit is filled. Regulate the pressure to 0.5 bar (7.2 psi) again if necessary.

Connect the Vehicle Diagnostic Tester and run the following steps:

Engine electronic functions
Charging
Charge air circuit checking for leaks

Installing

Assemble in the reverse order of removal. Note the following:

-- Check the O-rings for damage and replace if necessary.

Tightening Specifications:

Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS
Refer to OVERVIEW - CHARGE AIR SYSTEM
