Upper Air Duct Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg and 2013 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

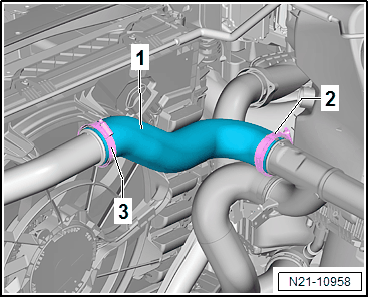

-- Loosen the screw-type clamp -3- and remove the charge air pressure hose -1- from the air duct pipe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connector -3- from the Charge Air Pressure Sensor -G31-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

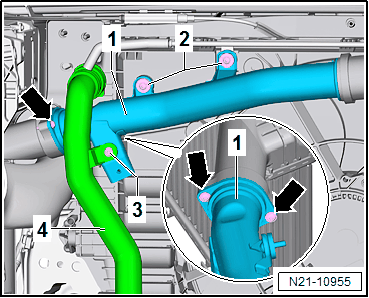

-- Remove the bolt -arrow-.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2 and 3-.

-- Remove the air duct pipe -1-.
