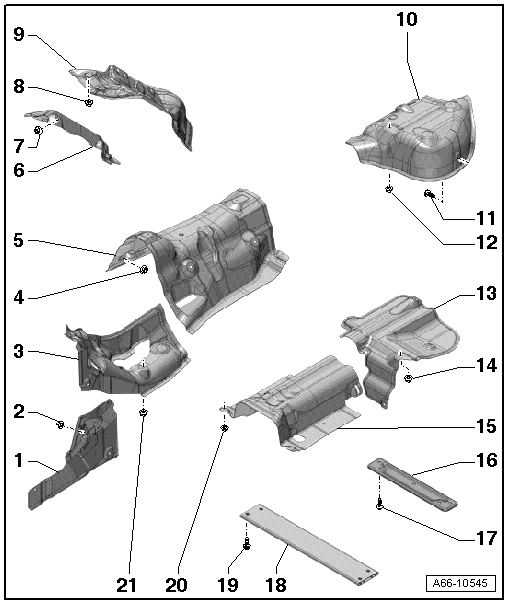

Overview - Heat Shield
- Heat Shield
- For the longitudinal member
- Removing and installing: left LEFT LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING , right RIGHT LONGITUDINAL MEMBER HEAT SHIELD, REMOVING AND INSTALLING
- Nut
- 2.5 Nm
- Quantity: 4
- Heat Shield
- For the front of the tunnel
- Removing and installing: left LEFT FRONT TUNNEL HEAT SHIELD, REMOVING AND INSTALLING , right RIGHT FRONT TUNNEL HEAT SHIELD, REMOVING AND INSTALLING
- Nut
- 2.5 Nm
- Quantity: 6
- Heat Shield
- For the center of the tunnel
- Removing and installing, refer to CENTER TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the top of the tunnel
- Removing and installing, refer to UPPER TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Nut
- 2.5 Nm
- Quantity: 2
- Nut
- 2.5 Nm
- Quantity: 5
- Heat Shield
- For the plenum chamber bulkhead
- Removing and installing, refer to PLENUM CHAMBER BULKHEAD HEAT SHIELD, REMOVING AND INSTALLING .
- Heat Shield
- For the rear muffler
- Removing and installing, refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Nut
- 2.5 Nm
- Quantity: 3
- Heat Shield
- For the center of the exhaust system
- Removing and installing, refer to EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING .
- Nut
- 2.5 Nm
- Quantity: 5
- Heat Shield
- For the back of the tunnel
- Removing and installing, refer to REAR TUNNEL HEAT SHIELD, REMOVING AND INSTALLING .
- Crossbrace
- Removing and installing, refer to REAR TUNNEL BRIDGE, REMOVING AND INSTALLING .
- Bolt
- 24 Nm
- Quantity: 4
- Tunnel Brace
- Removing and installing, refer to FRONT TUNNEL BRIDGE, REMOVING AND INSTALLING .
- Bolt
- 24 Nm
- Quantity 4 or 6 depending on the version
- Nut
- 2.5 Nm
- Quantity: 4
- Nut
- 2.5 Nm
- Quantity 6: on the left
- Quantity: 7 on right
