Exhaust Pipes/Mufflers, Separating

• A separating point has been provided in the connecting pipe for individual replacement of the center or rear muffler
• The separating point is marked by a depression around the circumference of the exhaust pipe.

Special Tools And Workshop Equipment Required

• Chain Pipe Cutter VAS 6254

Procedure

-- Separate the exhaust pipes at a right angle at the separating points -arrow- using a Chain Pipe Cutter VAS 6254.

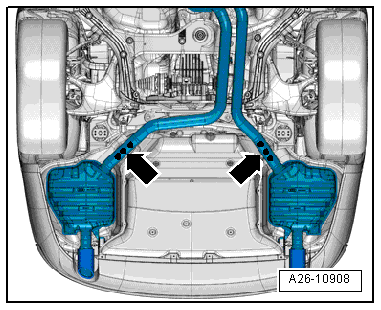

Fig 1: Identifying Exhaust Pipe Separating Points

Courtesy of AUDI OF AMERICA, LLC

-- When installing, position the clamping sleeves -arrows- on the center of the separating point

Fig 2: Identifying Clamping Sleeve Positions

Courtesy of AUDI OF AMERICA, LLC

-- Install double clamps so that the bolt ends do not project over lower edge of double clamp.

Fig 3: Identifying Installed Position Of Rear Double Clamps

Courtesy of AUDI OF AMERICA, LLC

• Installed position: the threaded connectors face forward.

-- Install the exhaust system free of tension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
