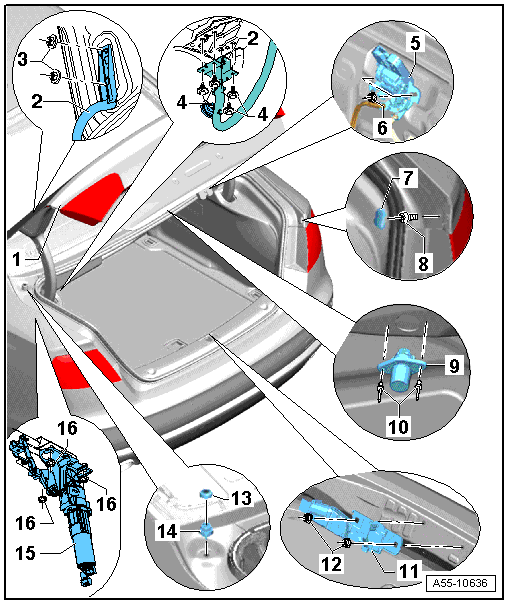

Overview - Rear Lid
- Rear Lid
- Removing and installing, refer to REAR LID, REMOVING AND INSTALLING .
- Adjusting, refer to REAR LID, ADJUSTING .
- Rear Lid Seal, Removing and Installing, refer to REAR LID SEAL, REMOVING AND INSTALLING .
- Rear Lid Hinge
- Nut
- 34 Nm
- Bolt
- 34 Nm
- Rear Lid Lock
- To remove, remove combi-bolts and disengage cable.
- Nut
- Cover
- Bolt
- 2.5 Nm
- Rear Adjusting Buffer
- Adjusting, refer to Stop Buffer, Adjusting
- Hollow Rivet
- Lid Catch
- Note different versions
- Nuts
- 23 Nm
- Adjusting Buffer
- Install in the rear lid
- Front Adjusting Buffer
- Adjusting, refer to Stop Buffer, Adjusting
- Rear Lid Motor 1 -V444-
- Nut
- 20 Nm
