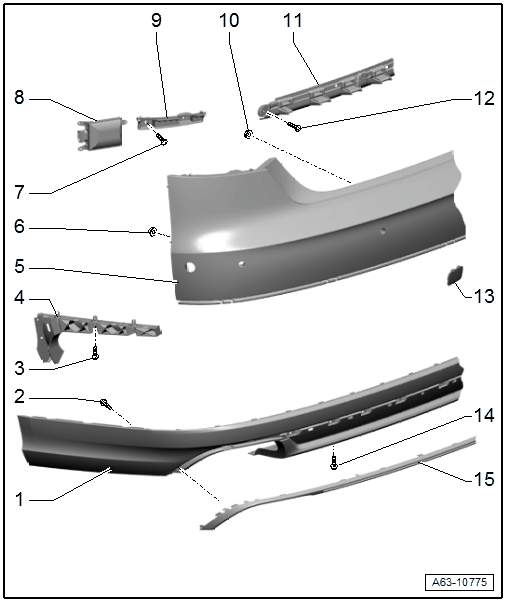

Overview - Bumper Cover, AUDI S8
- Bumper Cover Lower Section
- Removing and installing, refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, AUDI S8 .
- Bolt
- 2.2 Nm
- Quantity: 6
- Bolt
- 1.5 Nm
- Quantity: 3
- Side Mount
- For the bumper cover
- Removing and installing, refer to BUMPER COVER SIDE MOUNT, REMOVING AND INSTALLING .
- Rear Bumper Cover
- Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
- Nut
- 4 Nm
- Quantity: 3
- Bolt
- 2.5 Nm
- Quantity: 2
- Lane Change Assistance Control Module
- Removing and installing, refer to LANE CHANGE ASSISTANCE .
- Upper Mount
- For the bumper cover
- Removing and installing, refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- 4 Nm
- Center Mount
- For the bumper cover
- Removing and installing, refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Quantity: 3
- Cover
- For the towing eye
- Bolt
- 2 Nm
- Quantity: 4
- Trim Strip
- For the bumper cover lower section
- Removing and installing, refer to BUMPER COVER LOWER SECTION TRIM STRIP, REMOVING AND INSTALLING, AUDI S8 .
