Overview - Bumper Cover, AUDI A8 Through My 2013

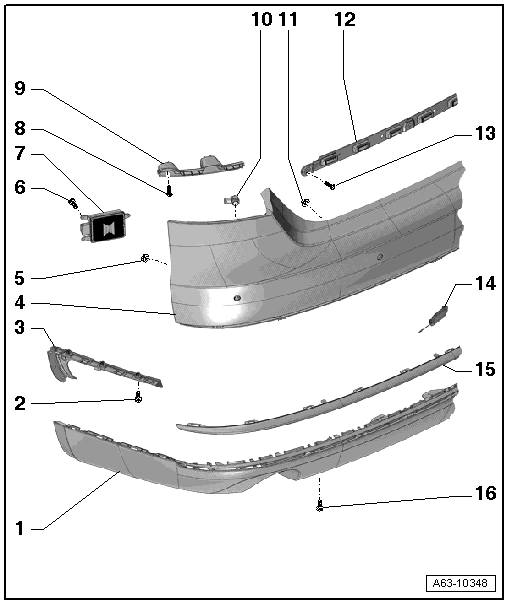

Fig 1: Overview - Bumper Cover, Audi A8 Through My 2013

Courtesy of AUDI OF AMERICA, LLC

1. Bumper Cover Lower Section
   • Removing and installing, refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2013 .
2. Bolt
   • 1.5 Nm
   • Quantity: 3
3. Side Mount
   • For the bumper cover
   • Removing and installing, refer to BUMPER COVER SIDE MOUNT, REMOVING AND INSTALLING .
4. Rear Bumper Cover
   • Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
5. Nut
   • 4 Nm
   • Quantity: 3
6. Bolt
   • Quantity: 2
   • Tightening specification, refer to LANE CHANGE ASSISTANCE .
7. Lane Change Assistance Control Module
   • Removing and installing, refer to LANE CHANGE ASSISTANCE .
8. Bolt
   • 2.5 Nm
   • Quantity: 2
9. Upper Mount
   • For the bumper cover
   • Removing and installing, refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
10. Rear Parking Aid Sensor
    • Removing and installing, refer to Parking Aid .
11. Nut
    • 4 Nm
12. Center Mount
    • For the bumper cover
    • Removing and installing, refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
13. Bolt
    • 2.5 Nm
    • Quantity: 3
14. Cover
    • For the towing eye
15. Trim Strip
    • Removing and installing, refer to TRIM STRIP, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2013 .
16. Bolt
    • 2 Nm
    • Quantity: 4
