Overview - Bumper Cover, AUDI A8 From My 2014

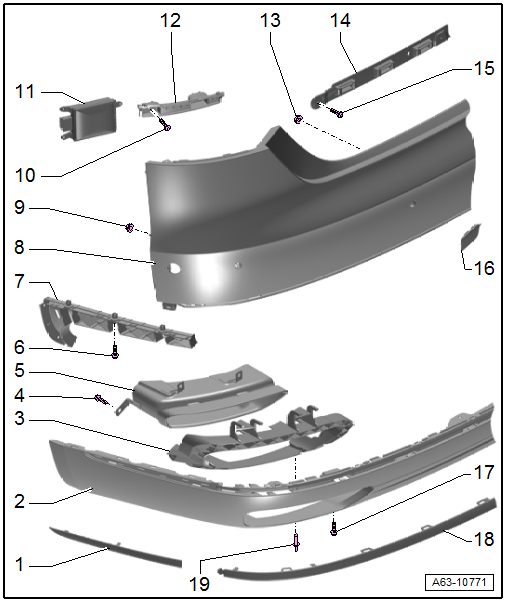

Fig 1: Overview - Bumper Cover, Audi A8 From My 2014

Courtesy of AUDI OF AMERICA, LLC

1. Side Trim Strip
   • Removing and installing, refer to SIDE TRIM STRIP, REMOVING AND INSTALLING, VEHICLES FROM MY 2014 .
2. Bumper Cover Lower Section
   • Removing and installing, refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, VEHICLES FROM MY 2014 .
3. Mount
   • For the tail pipe trim
   • Removing and installing, refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING .
4. Bolt
   • 2 Nm
   • Quantity: 4
5. Tail pipe trim
   • Removing and installing, refer to TAIL PIPE TRIM, REMOVING AND INSTALLING .
6. Bolt
   • 1.5 Nm
   • Quantity: 3
7. Side Mount
   • For the bumper cover
   • Removing and installing, refer to BUMPER COVER SIDE MOUNT, REMOVING AND INSTALLING .
8. Rear Bumper Cover
   • Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
9. Nut
   • 4 Nm
   • Quantity: 3
10. Bolt
    • 2.5 Nm
    • Quantity: 2
11. Lane Change Assistance Control Module
    • Removing and installing, refer to LANE CHANGE ASSISTANCE .
12. Upper Mount
    • For the bumper cover
    • Removing and installing, refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
13. Nut
    • 4 Nm
14. Center Mount
    • For the bumper cover
    • Removing and installing, refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
15. Bolt
    • 2.5 Nm
    • Quantity: 3
16. Cover
    • For the towing eye
17. Bolt
    • 2 Nm
    • Quantity: 4
18. Center Trim Strip
    • Removing and installing, refer to CENTER TRIM STRIP, REMOVING AND INSTALLING, VEHICLES FROM MY 2014 .
19. Rivet
    • Quantity: 2
