Impact Member, Removing And Installing, Vehicles Without Trailer Hitch: Removing

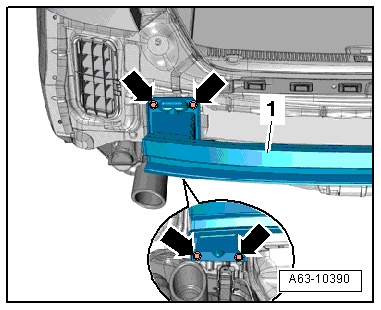

Fig 1: Identifying Impact Member

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the impact member -1-.
