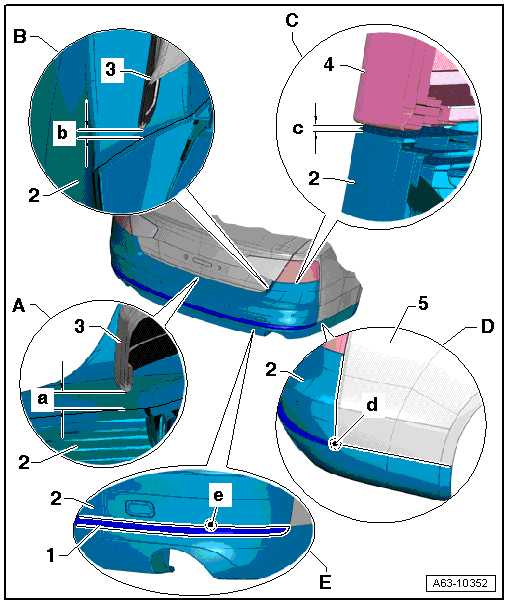

Bumper Cover Gap Dimension
- A -
Rear Bumper Cover to the Bottom of the Rear Lid
- Gap dimension -a- = 5.0 ± 0.8 mm
-2- Bumper cover
-3- rear lid
- B -
Rear Bumper Cover to the Side of the Rear Lid
- Gap dimension -b- = 3.5 ± 0.8 mm
-2- Bumper cover
-3- rear lid
- C -
Rear Bumper Cover to the Outer Tail Lamp Assembly
- Gap dimension -c- = 1.5 ± 0.7 mm
-2- Bumper cover
-4- outer tail lamp
- D -
Rear Bumper Cover to the Rear Side Panel
- Gap dimension -d- = zero gap
-2- Bumper cover
-5- rear side panel
- E -
Rear Bumper Cover to the Decorative Trim Strip
- Gap dimension -e- = zero gap
-1- Decorative trim strip
-2- Bumper cover
