Upper Bumper Cover Mount, Removing And Installing: Removing

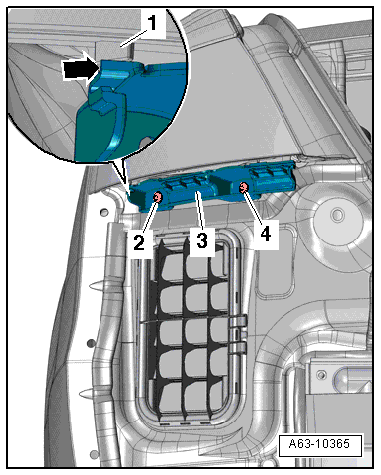

Fig 1: Identifying Upper Bumper Cover Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -2 and 4-.

-- Remove the upper bumper cover mount -3-.
